Vehicle Fitment
-
2005–2014 Ford Mustang
-
S197 chassis
-
V6 & GT trims
(Street-focused application; not intended for hardcore track or extreme slammed builds)
From the manufacturer
Lowering an S197 Mustang: Use the Range Wisely
This kit offers height adjustability from ~1.0 to 3.0 inches. Just because it can go low doesn’t mean it should—physics still runs the show.
Recommended ride heights:
-
1.0–1.5 inches: Best balance for daily driving
-
1.5–2.0 inches: Aggressive street stance (alignment required)
-
2.0–3.0 inches: Show-focused height (geometry compromises increase)
Go too low and you’ll invite:
-
Reduced suspension travel
-
Increased bump steer
-
Bottoming out on real-world roads
Lowering works when geometry still works. Slam culture disagrees—physics wins.
Ride Quality: Firm, Controlled, Street-Friendly
Compared to worn OEM suspension, expect:
-
Firmer ride with improved damping control
-
Less bouncing over uneven pavement
-
Better stability at highway speeds
This setup is tuned for street use, not punishment. You’ll feel the road—but you won’t dread the commute.
Alignment After Installation (Non-Negotiable)
Lowering an S197 always changes alignment geometry.
What changes:
-
Increased negative camber up front
-
Toe shifts out of spec (tire killer #1)
-
Steering return affected by caster
Strongly recommended:
-
Professional alignment at final driving height
-
Caster/camber plates if lowering beyond ~1.25”
-
Keep toe close to factory specs for street use
Good suspension with bad alignment just eats tires faster.
Technical Data
Compatible with 2005-2014 Ford Mustang WILL NOT compatible with Shelby GT500 Models
[ NOTE ] — These Coilovers Strut will “Lowering your car” about 5~10CM and DOES NOT keep to Original Ride Height.
Technical Data
Package Includes: 2 Pieces Front + 2 Pieces Rear + 2 Stainless Steel Wrenches ( as picsture show)
Spring Rate Front: 8KG/MM (448 lbs/in)
Spring Rate Rear: 6KG/MM (336 lbs/in)
Adjustable damper: None Adjustable damper
Adjustable Height: Yes
Adjustable camber plate: No
Handling Improvements You’ll Notice
Once installed and aligned, MOSTPLUS coilovers deliver:
-
Sharper turn-in
-
Reduced nose dive under braking
-
Less body roll
-
More confidence during spirited driving
It won’t turn your Mustang into a track legend—but it will feel tighter, newer, and far more composed than stock.
Build Quality & Ownership Notes
-

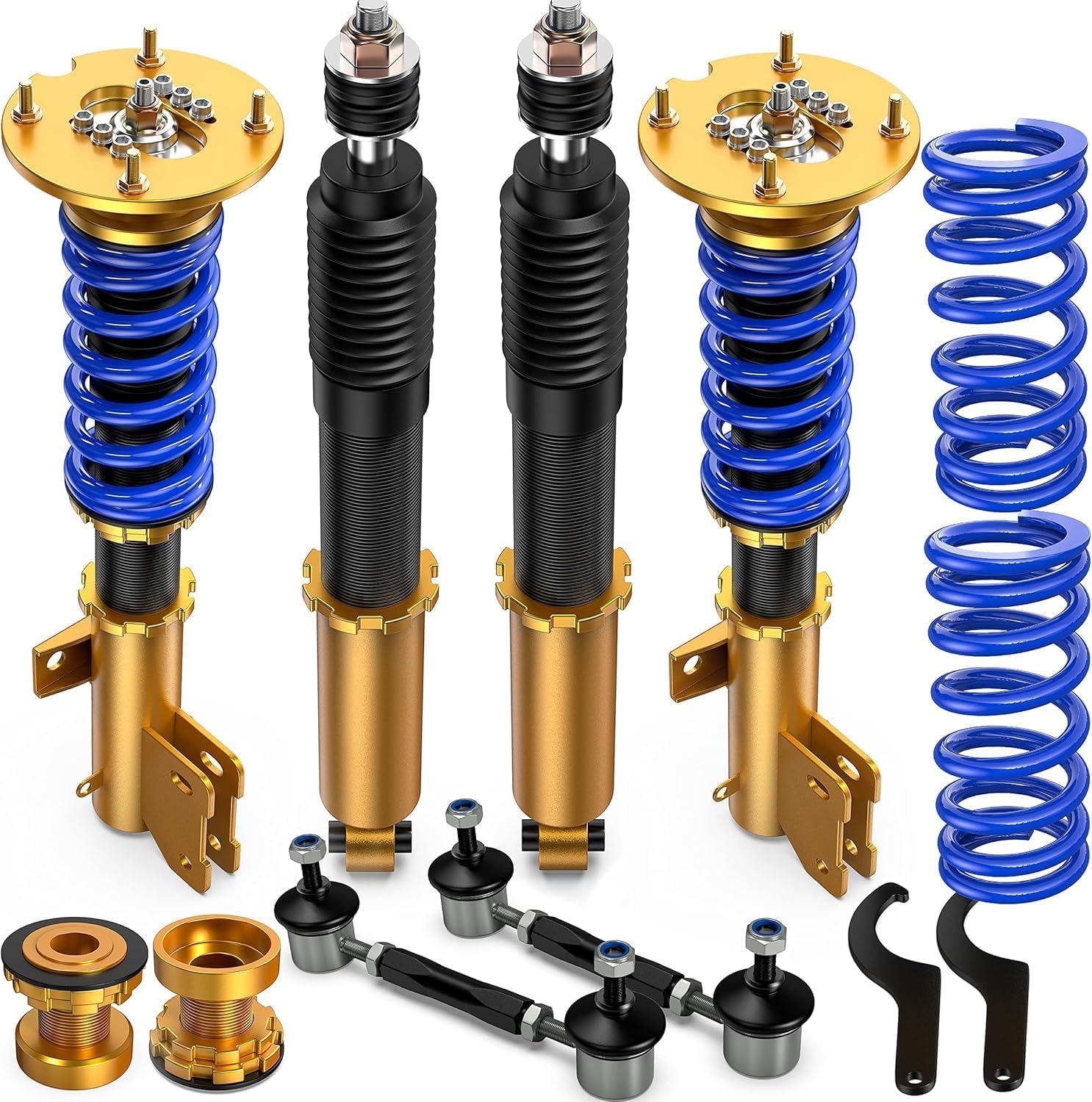

Full 4-piece coilover set (front & rear)
-
Threaded bodies for precise height adjustment
-
Direct bolt-on replacement for factory components
-
Best paired with fresh sway bar end links and bushings
Install tip: Use anti-seize on the threads. Adjustable suspension that seizes later is just expensive décor.
Features
Pillow ball top mount — this design helps combat noise while tuning. It also improves the steering feel and response
All inserts come with fitted rubber boots to protect the damper and keep it clean. it will last strut’s usage span.
Hi Tensile performance spring – Under multiple continuously test, the spring distortion is less than 0.04%. Also, the special surface is for improving the durability and performance.
Easy installation with right tools.
Installation is also included
Who This Kit Is Best For
✔ Daily-driven S197 Mustangs
✔ Budget-conscious suspension refresh
✔ Mild stance and handling upgrades
✔ Owners replacing tired OEM struts
❌ Track-only builds
❌ Extreme slammed setups
❌ “Alignments are optional” thinkers
