✅ Vehicle Fitment
Designed for select:
-
Mazda3 (verify trim & engine)
⚠ Confirm sedan vs hatchback and suspension package before ordering.

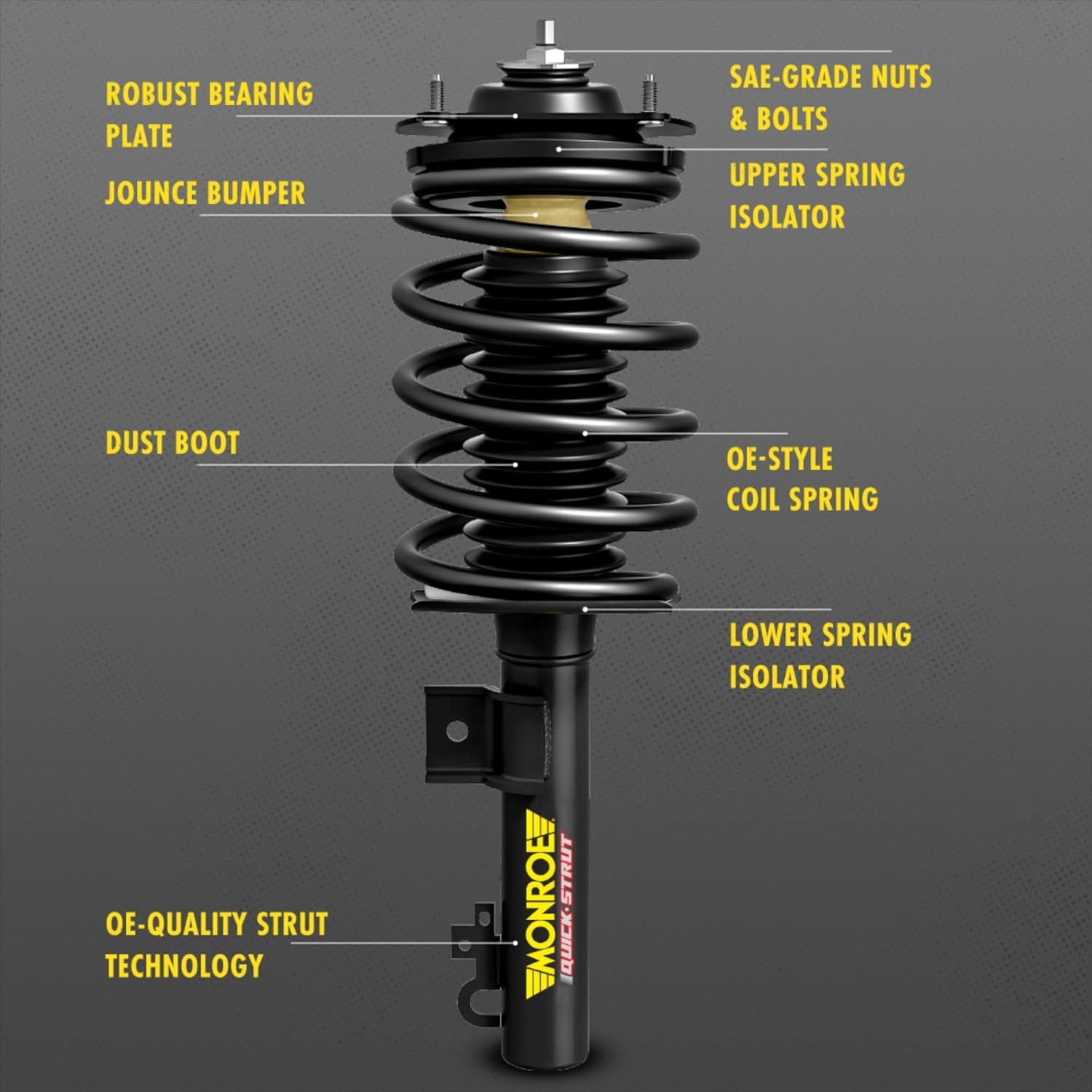

What’s Included
-
Strut (damper)
-
Coil spring
-
Upper mount
-
Bearing plate
-
Boot & bump stop
Pre-assembled = no compressed spring roulette.
Why Replace with a Quick-Strut?
Worn struts cause:
-
Nose dive under braking
-
Excessive bounce
-
Uneven tire wear
-
Clunking noises
-
Poor steering response
A complete assembly restores ride control and stability.

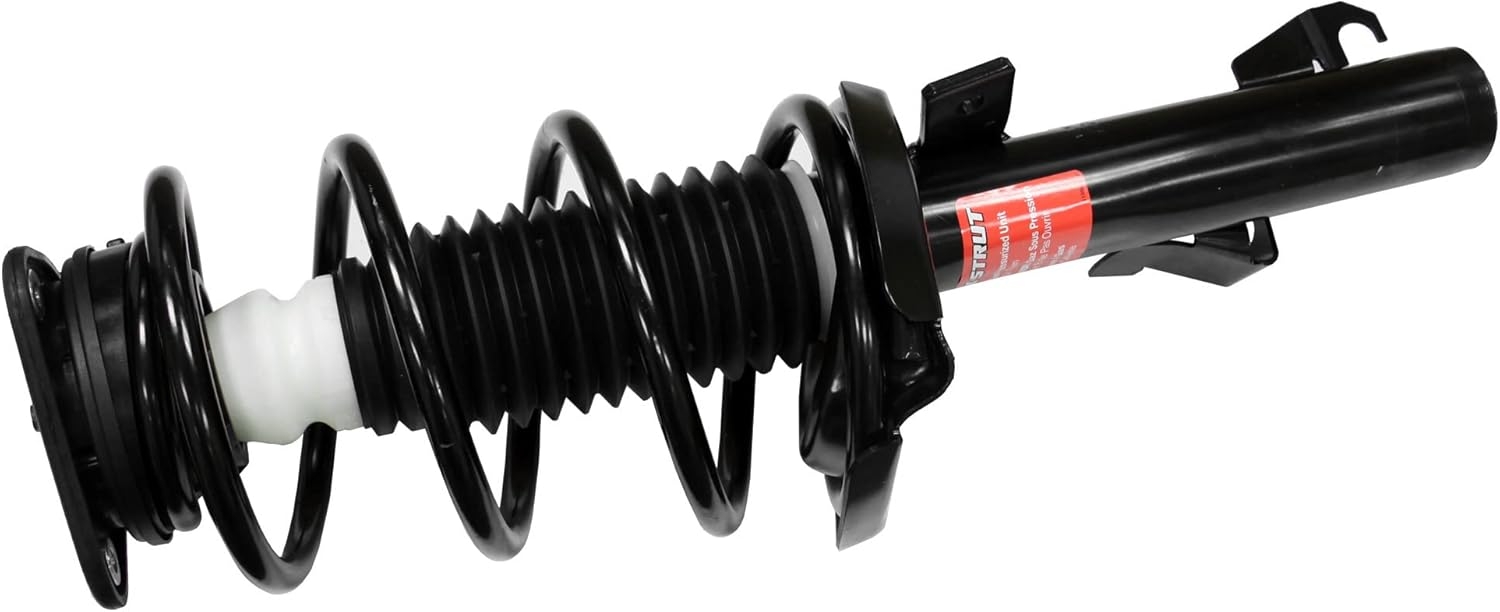

Monroe 172264 Mazda3 Quick Strut Key Features
🔧 OE-Style Design
Engineered to match factory ride height and damping.
⚙ Gas-Charged Strut
Improves responsiveness and reduces fade.
🛠 Complete Assembly
Faster install, fewer headaches.
Ride & Handling Benefits
-
Restores factory comfort
-
Improves braking stability
-
Reduces body roll
-
Enhances overall steering feel
Fresh struts make a 10-year-old Mazda feel surprisingly new.
ASSEMBLED IN THE USA – This Quick-Strut assembly is assembled with pride in Paragould, Arkansas from domestic and imported components
From the manufacturer
MONROE QUICK-STRUT ASSEMBLIES
The first and only Quick-Strut. Monroe Quick-Strut assemblies are unmatched in quality, durability and fit. They simplify the installation process, including everything needed for strut replacement in a single, fully assembled unit with no need for a spring compressor.
Quick-Strut units feature high-quality steel, application-specific coil springs to restore ride height and strut rods which surpass the OE flexibility standard, maintaining structural integrity in the event of a major road impact.
Restore your car, light truck, SUV or CUV back to OE-quality ride performance and drivability with a Monroe Quick-Strut assembly. Including all the components required for strut replacement without the need for a spring compressor, this complete strut assembly features the strut, coil spring and strut mount preassembled for easy installation. Strut assemblies perform two main jobs: perform a damping function like shock absorbers and provide structural support for the vehicle suspension by supporting the spring and holding the tire in an aligned position.
CAUSES & CONSEQUENCES OF STRUT FAILURE
Like many parts on your vehicle, struts are subject to wear. The rate of wear depends on a wide range of variables, such as road and environmental conditions, your driving style and vehicle load. Causes of worn struts include damaged bushings, exposure to the elements, loss of oil viscosity and gradual degradation of internal components over time. Driving with worn struts can result in problems ranging from reduced braking efficiency, cause premature tire wear, loss of stability and damage to other suspension parts.
IMPORTANCE OF AN ALIGNMENT
Always perform an alignment anytime replacement shocks, struts or other ride control parts are installed. Camber, toe and caster settings can all be affected by installing new struts. Failure to make sure the vehicle’s alignment is within factory specifications can lead to problems like premature tire wear.
IMPORTANCE OF MAINTAINING RIDE HEIGHT
Proper ride height is crucial to vehicle durability, performance and safety. When inspecting a vehicle, don’t just check the static ride height. The dynamic ride height – the ride height of a vehicle in motion – may tell a different story. The cause of dynamic ride height issues is often worn or damaged coil springs. Don’t just replace the strut – be sure to also inspect for and replace worn coil springs.
HOW TO PROPERLY INSTALL A STRUT ASSEMBLY
Avoid noise after installing a strut assembly with this four-step procedure.
- Loosely install 1 or 2 upper mounting nuts and position lower strut mount to steering knuckle assembly
- Install lower mounting bolts and lower vehicle to the ground
- Locate manufacturer torque specifications
- Torque lower bolts and secure upper mounting nuts in alternating pattern
Monroe 172264 Mazda3 Quick Strut Installation Notes
-
Replace in pairs (front axle set)
-
Alignment required after installation
-
Inspect sway bar links and control arm bushings
-
Torque hardware to spec
Skipping alignment? That’s how tires disappear early.
Elliot Quinn –
These arrived extremely fast and the installation was easier than expected after watching a couple youtube videos. A little background the car I installed these on is a 2004 Mazda 3i with about 170k miles, and when I pressed down firmly on the left and right front of the car it would bounce about 3-4 times before stopping (bad sign). After installing both front sides the car comes back to neutral immediately after pushing down without bouncing, Even though the car is near the end of its life, this was absolutely worth the cost and the labor. As long as you have (or can borrow) a breaker bar, sockets, and a little muscle this is doable for most people.I had help from one other person and although it took some work to get the steering knuckle off the old shock/strut and on the new one, we were able to install this and the other side quick-strut assembly in about 2-3 hours. My car now drives significantly better, much smoother and quieter now that my shocks/struts are actually absorbing the impact. On a side note, the car seems to sit a little higher now after installing these but I think that’s because it was sagging from the wear on the old shock/struts but I actually prefer the way it feels now.
Roy H –
Worked well for 2012 Mazda 3 (front driver/left side). Ride quality seems to have improved. I don’t think it feels overly firm, does a solid job on potholes and bumpy roads.If you buy both, there is an “L” or “R” where the sway bar link goes in
Mark Peterson –
Great price. Compared to Auto parts store. My Mazda 3 ride was getting a bit choppy! Much to be expected after150.000 miles. Replace with two Monroe fronts and A-Premium rears. They work great together. Monroe rears had bad reviews. So that’s why I didn’t pair up. what a noticeable difference. Well worth every penny. Also got a front end alignment and a ball joint replacement. Drives straight down the road. And way smother. Looking forward to a long road trip.
A –
Installed 8 years ago and driven on it for that same amount of time. Took care of the rattle due to old worn struts but that’s the only positive I can say about these stut assembly. It too tall for the car, which never settled down to OEM height.. Excessive front body roll during turns, to the point that I don’t drive my trusted steed like I used to due to the body roll. I wish I kept my original struts and springs. Now I’m looking to buy original used springs/strut assembly for 17 inch wheels which my Mazda came with, so I can replace these Monroe’s.In a nutshell, I won’t buy these if I knew what I know now. I’ve attached pictures of my mazda so you can see the height difference between rear and front tire from the fenders.
Shane –
I purchased two of these strut assemblies for my 2008 Mazda 3 (front – right and left – purchased separately). They are just as advertised. They were easy to install and fit right in with no hassle at all. However – NOTE – the center nut on the top of the spring assembly wasn’t all the way tight, so after a hundred miles or so I heard a noise. Took a bit, but I found out that that nut was loose. I tightened it and all is well. I have about 1000 miles on these struts and they’re good so far. I’d get these again – but I’d check that nut sooner!
Katy de león –
No esta diseñado para 2020 honda crv
pfictionfan4life –
I should’ve replaced my 2008 Mazda3 struts a year ago.So this helped ease the strain on my wheels which I was denting and banging out constantly with potholes.The ride is smooth and cornering ability wasn’t sacrificed.The ride in the original shocks (10 years old) were a bit rough/sporty which is why I dealt with them for so long.The monroe shocks are smooth as silk compared to them. But not too mushy/sloppy. A+ and saved hundreds replacing them with a friend versus having a shop do them
Javier Garcia –
It works good and easy to install
Antonio Robles –
Le restó. Altura a mí Mazda 5, seguro vine diseñado para sedan y no para minivan, deberian aclarar.
Cumplió, pero le restó altura a mí Mazda 5.
Bryan –
Great struts fit great good price
Great struts fit great good price . Had trouble getting brake line to clip back in to strut had to enlarge hole just a bit .
