Core Specifications

• Intercooler Type: Bar-and-plate

• Universal Fit: Fabrication required

• Threaded Mounting Points: 4 (allows secure, custom positioning)

• Application: Turbocharged and supercharged systems

• Intended Use: Street performance, track use, drag setups, custom builds

(Note: Exact core dimensions vary by Mishimoto’s R-Line model; this product is intended as a universal solution requiring fabrication.)

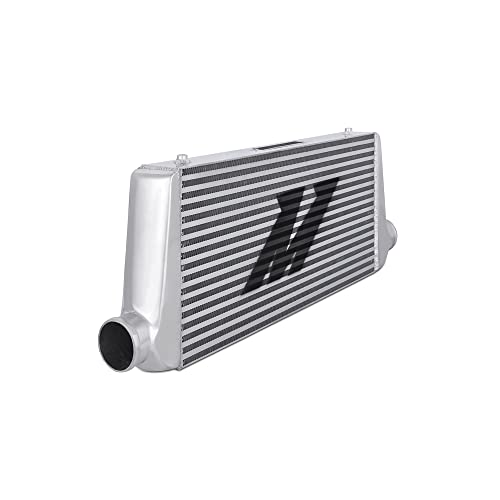

The Mishimoto R Line Intercooler provides the perfect cooling capacity needed for a supercharged and turbo charged vehicles. Constructed of 6061 aircraft quality aluminum for extreme durability, the Mishimoto R Line Intercooler will efficiently reduce induction air temperatures, while significantly improving engine output.

Key Features & Performance Benefits

✓ Large High-Capacity Bar-and-Plate Core

Maximizes heat dissipation, reduces pressure drop, and provides stable charge-air temperatures during extended boost.

✓ Universal Application

Ideal for:

• Custom turbocharger setups

• Engine swap platforms

• Performance builds needing higher cooling capacity than OEM

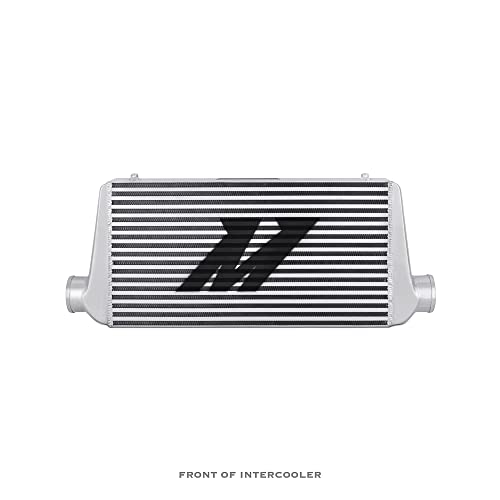

• Front-mount intercooler (FMIC) conversions

Fabrication of brackets and charge piping is typically required.

✓ Four Threaded Mounting Points

Allows secure, customizable mounting options, making fabrication easier for both front-mount and side-mount placements.

✓ Improved Airflow Efficiency

Engineered to handle high CFM output from large turbochargers, helping maintain power consistency during repeated pulls or track use.

✓ All-Aluminum Construction

Lightweight, corrosion-resistant, and built to withstand high thermal loads in demanding environments.

✓ Compatible with Various Piping Configurations

Works with 2.5–3.0 inch piping depending on the setup, allowing flexibility for single- or twin-turbo layouts.

Mishimoto front mount intercoolers are constructed of 6061 aluminum and are precision tig welded, offering an enhanced level of performance. The R Line intercooler will provide the ideal cooling capacity, while safely increasing horsepower and giving that extra boost that every driver appreciates.

Ideal Applications

The Mishimoto R-Line intercooler is well-suited for:

• Turbocharged 4-cylinder engines

• Big turbo conversions

• Inline-6 turbo engines (2JZ, RB26, etc.)

• V6 and V8 twin-turbo builds

• Drift, drag, time-attack, and high-demand track use

• Engine swap vehicles requiring a universal FMIC

It is designed for builders who require a strong balance of airflow, cooling efficiency, and installation flexibility.

Universal intercooler provides optimal flow and volume for high horsepower vehicles
Overall Size: 31″ x 12″ x 4″ / Core Size: 24″ x 12″ x 4″
Inlet & Outlet: 3″ / Tank Wall Thickness: 5mm / Max PSI: 32
Robust, one-piece cast aluminum end tanks withstand high boost pressures

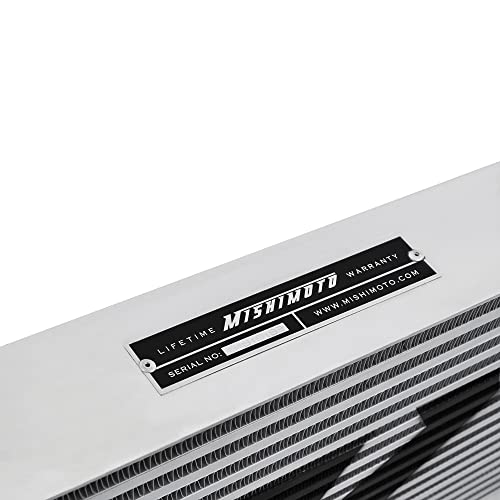

Mishimoto Lifetime Warranty
