Vehicle Fitment
-
2005–2014 Ford Mustang
-
S197 chassis
-
V6 & GT trims
(Street and spirited driving use; not intended for drag-only or extreme slammed builds)
Product description
Why the T7 Coilovers Work on the S197
The S197 chassis responds extremely well to improved shock control. The T7 kit uses monotube dampers, which react faster and manage spring motion far better than the factory twin-tube suspension.

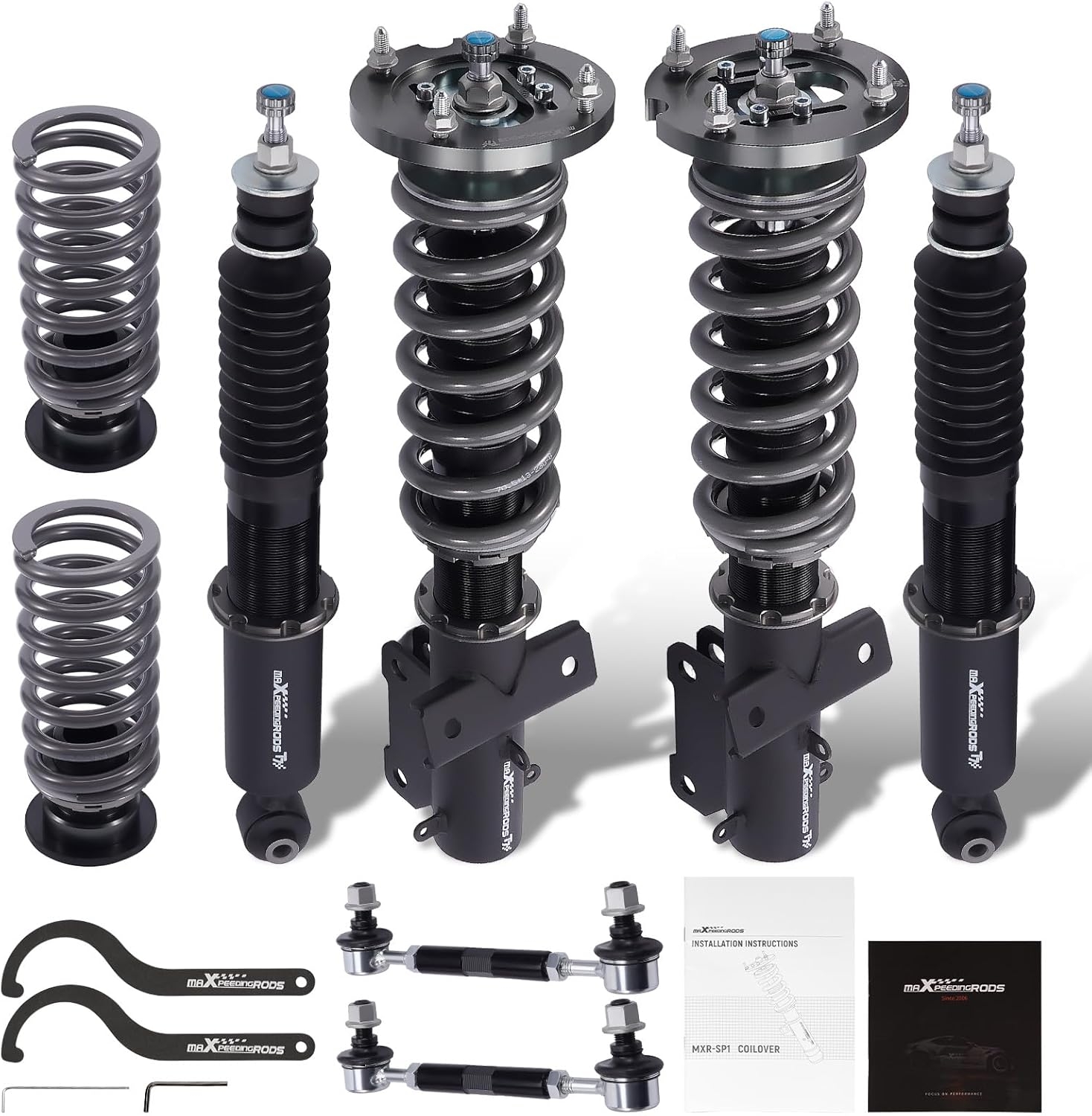

Key Features
-
24-level adjustable damping (compression/rebound combined)
-
Fully height-adjustable threaded shock bodies
-
Monotube damper design for consistent performance
-
Matched spring rates for S197 chassis balance
-
Direct bolt-on installation
Translation: more control, less guessing.
Lowering an S197 Mustang (Without Ruining Geometry)
Yes, this kit lowers the car—but it also keeps suspension travel usable if you set it up correctly.
Recommended ride heights:
-
1.0–1.5 inches: Ideal for daily driving and spirited street use
-
1.5–2.0 inches: Aggressive stance (alignment becomes mandatory)
Go lower than that and you’ll invite:
-
Reduced suspension travel
-
Increased bump steer
-
Harsh bottoming on real-world roads
The T7 system allows independent height adjustment, so you don’t sacrifice damper performance just to chase stance.
Ride Quality: 24 Clicks Beats One Guess
With 24 damping settings, you can actually tune the suspension to how you drive.
-
Softer settings → daily comfort, rough roads tolerated
-
Mid-range → balanced street performance
-
Firmer settings → sharper response, reduced body roll
Compared to worn OEM suspension:
-
Less float at highway speeds
-
Better control over bumps
-
More confidence under braking and cornering
Firm when you want it. Civil when you need it.
Alignment After Installation (Mandatory)
Lowering an S197 always changes alignment geometry—there’s no workaround.
What changes:
-
Increased negative camber up front
-
Toe shifts out of spec (tire killer #1)
-
Caster affects straight-line stability
Strongly recommended:
-
Professional alignment at final driving height
-
Caster/camber plates if lowering beyond ~1.25”
-
Keep toe close to factory specs for street use
Good coilovers with bad alignment just destroy tires faster.
Handling Improvements You’ll Feel Immediately
Once installed and aligned, expect:
-
Sharper turn-in
-
Reduced nose dive under braking
-
Less body roll
-
More mid-corner confidence
No, it won’t turn your Mustang into a GT3 car—but it will feel dramatically more composed than stock.
Build Quality & Ownership Notes
-
Monotube dampers for consistent heat control
-
Threaded bodies for precise height tuning
-
Rebuildable design
-
Periodic inspection recommended (like any adjustable setup)
Install tip: Use anti-seize on the threads. Adjustable coilovers that seize later are just expensive décor.
