Confirmed Vehicle Fitment
Compatible with the following Hyundai gasoline applications:
Hyundai
-
Genesis Sedan — 2009
-
Engine: 3.8L V6
-
-
Genesis Coupe — 2010–2016
-
Engine: 3.8L V6
-
Electrical Specifications
-
Voltage: 12V
-
Output: 130 Amps
-
Regulation: Internal (IR/IF compatible)
⚠️ Always verify engine size and OE alternator reference before ordering.
Whatever you drive, we have the part for it!
DB Electrical is your go-to source for quality electrical parts for vehicles of every shape and size – from motorcycles and ATVs to cars, trucks, and boats. Our engineers closely partner with leading factories to develop electrical components that perform and fit OEM standards.
Selling from the heartland of America located in Kingsport, Tennessee, the people of DB Electrical make it their goal is to get your vehicle back on the road, field, trail, or water. They take great pride in providing top-quality products that keep you moving forward.
Why Alternator Health Matters on Hyundai 3.8L Platforms
Once the engine is running, the alternator becomes the primary electrical power source for:
-
ECU, ignition, and fuel delivery
-
Electronic throttle and traction control
-
Cooling fans and climate control
-
Infotainment and interior electronics
-
Charging and maintaining the battery
When alternator output drops, the battery tries to compensate—briefly—and then fails early. Symptoms usually include:
-
Repeated dead batteries
-
Battery or charging system warnings
-
Flickering lights or dash displays
-
Random electrical behavior
Replacing the alternator fixes the root cause, not the symptom.

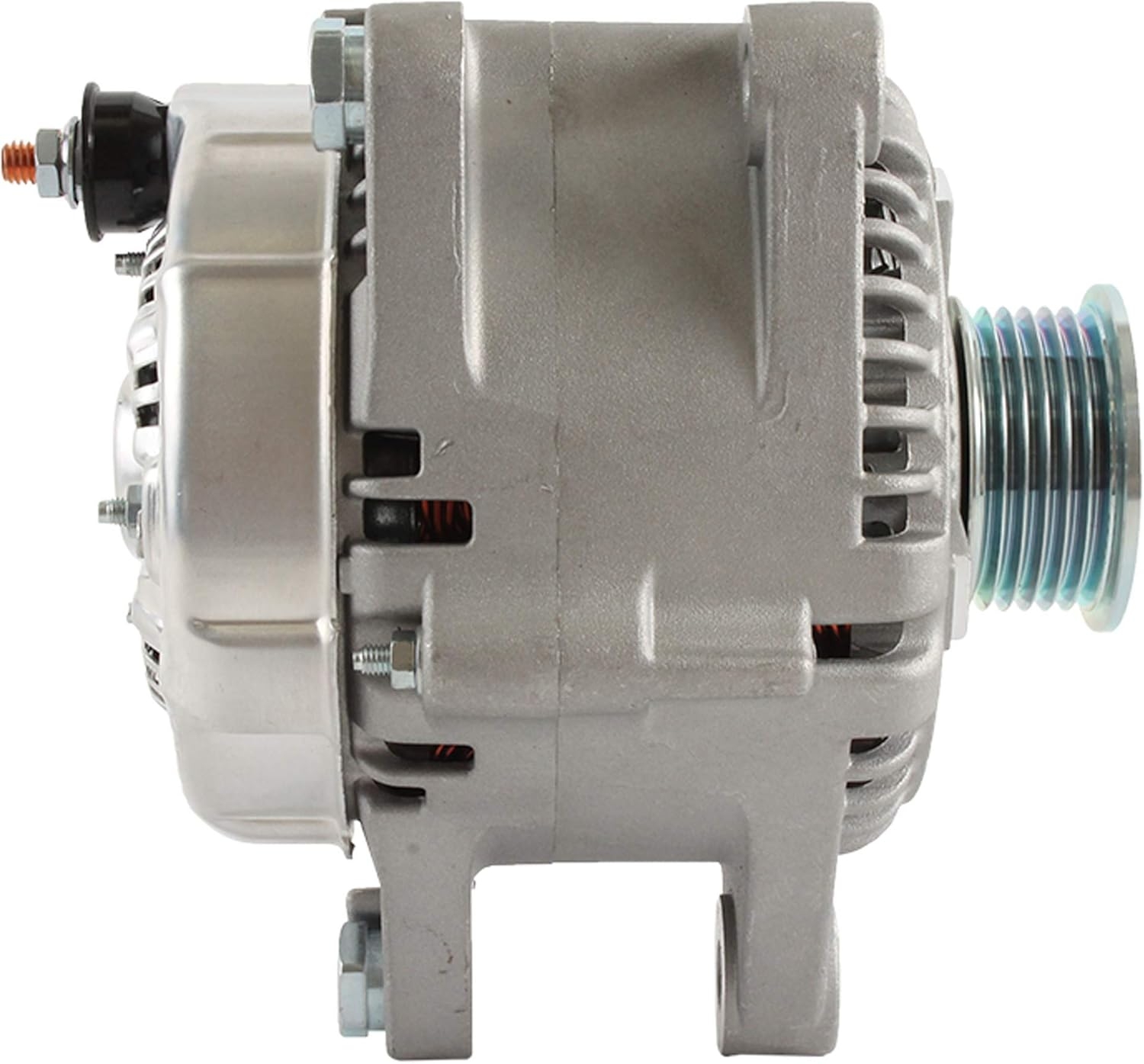

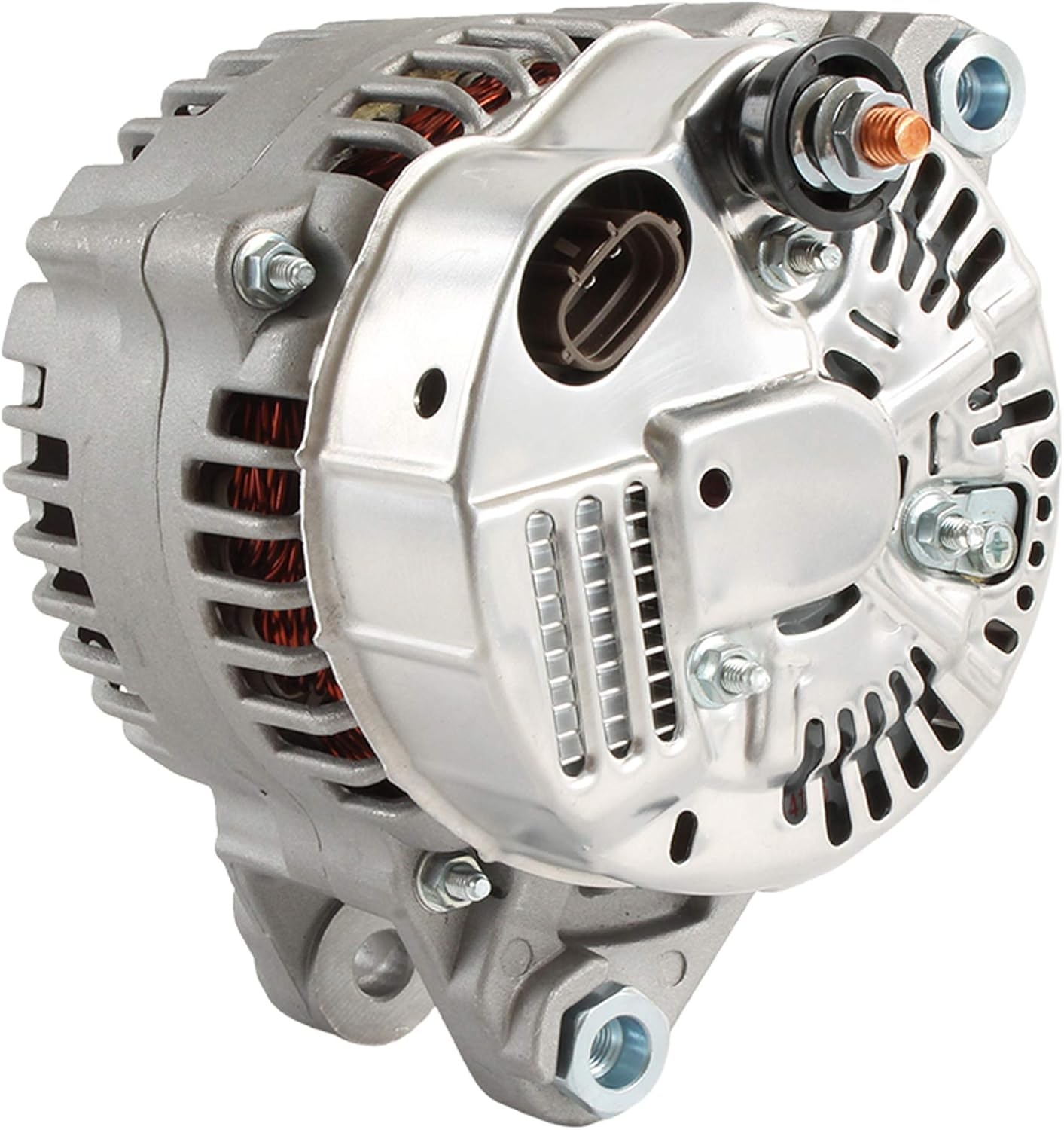

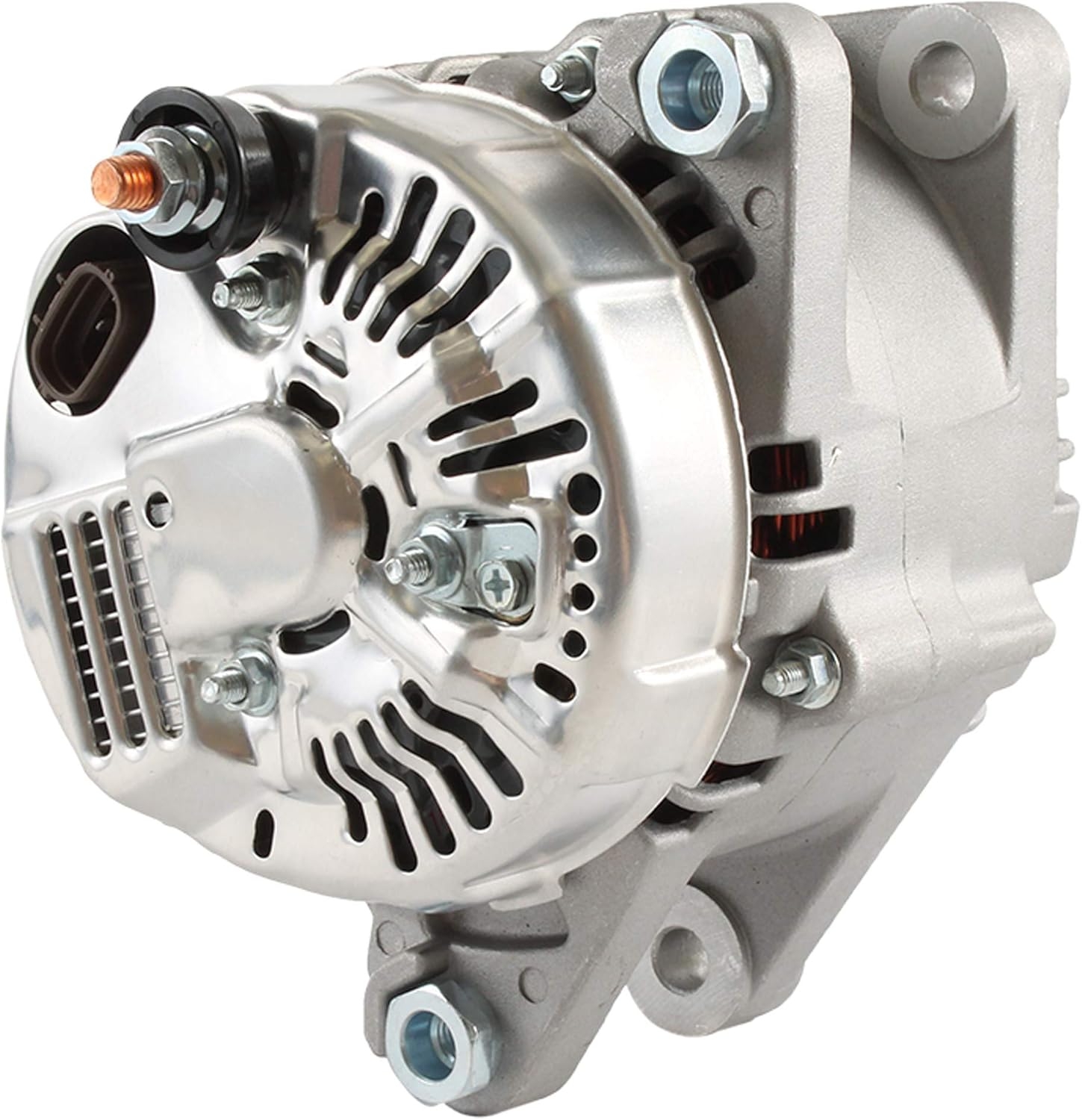

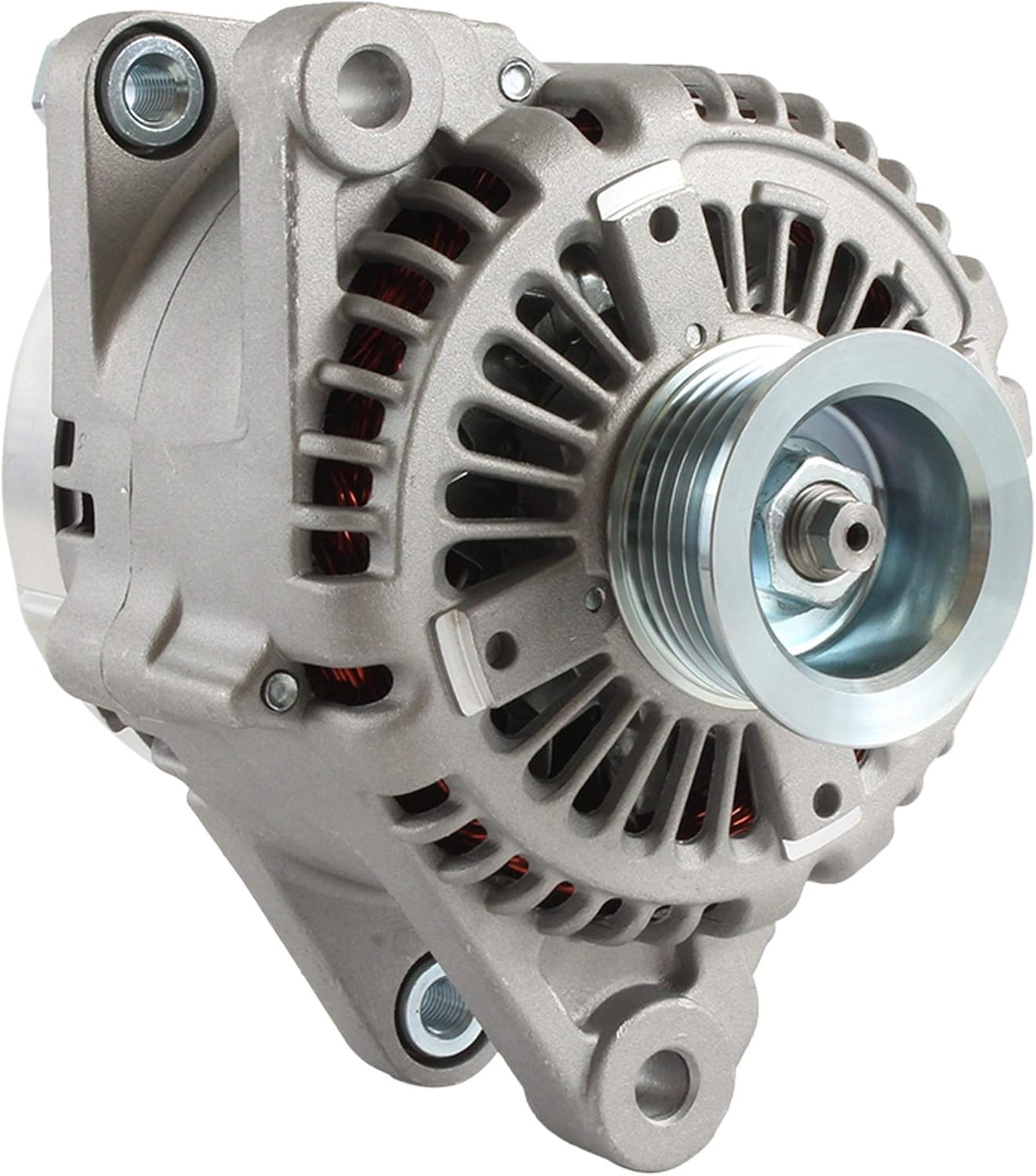

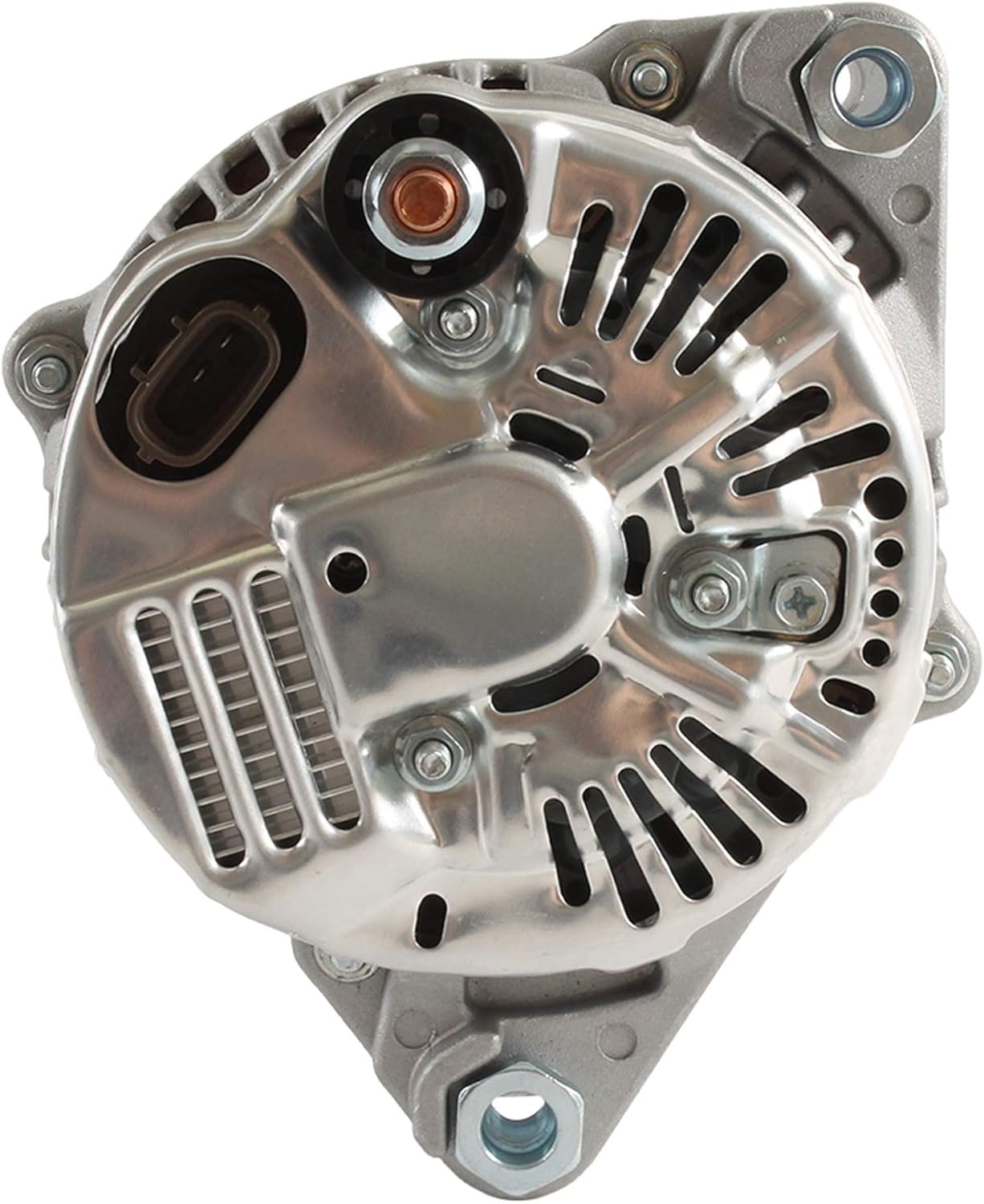

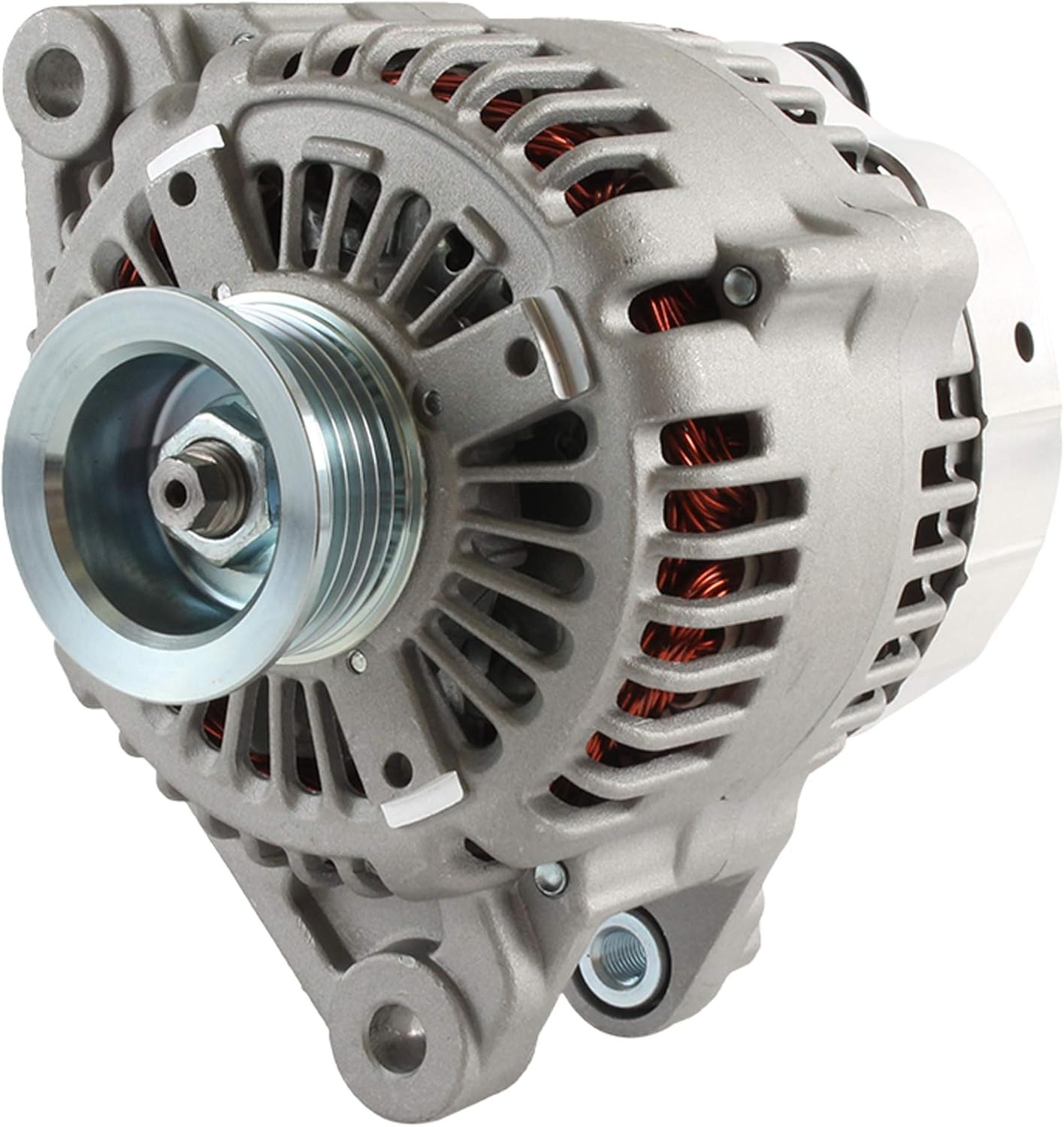

Description: Alternator
Volt: 12
Amps: 130
Condition: New
Regulator Clock: 1:30
Rotation Direction: Clockwise
Mount Hole ID 1: 11mm
Mount Hole 1 Type: Unthreaded
Mount Hole ID 2: M10x1.25
Mount Hole 2 Type: Threaded
Mount Hole ID 3: 11mm
Mount Hole 3 Type: Unthreaded
Mount Hole ID 4: M10x1.25
Mount Hole 4 Type: Threaded
Mounting Ear Thickness: 0.866″
Mounting Ear Thickness: 22mm
Mounting Ear 2 Thickness: 0.906″
Mounting Ear 2 Thickness: 23mm
Mounting Ear 3 Thickness: 0.866″
Mounting Ear 3 Thickness: 22mm
Mounting Ear 4 Thickness: 0.906″
Mounting Ear 4 Thickness: 23mm
Fan Location: Internal
Regulator Location: Internal
Terminal ID 2: B+
Terminal 2 Size: M8x1.25
Terminal ID 3: L
Terminal 3 Size: Spade
Terminal ID 4: FR
Terminal 4 Size: Spade
Polarity: Negative
Number of Grooves: 6
Groove OD: 2.067″
Groove OD: 52.500mm
Pulley Type: Solid
Pulley Outer Diameter: 2.362″
Pulley Outer Diameter: 60mm
Replaces OEM Numbers:
Arrowhead: AND0617
Hyundai: 37300-3C180
J&N Electrical Products: 400-52428
Lester: 11494
Poong Sung Motors: 02131-9530
Compatible With/Replacement For:
Hyundai GENESIS 2009, GENESIS COUPE 2010 – 2016
From the manufacturer
DB Electrical
Whatever You Drive, We Have the Part for It
DB Electrical is your go-to source for quality electrical parts for vehicles of every shape and size – from motorcycles and ATVs to cars, trucks and boats. Our engineers work in close partnership with leading factories to develop electrical components that perform and fit to OEM standards.
Selling from the Heartland of America
Located in Kingsport, Tennessee, the people of DB Electrical make it their goal is to get your vehicle back on the road, field, trail or water. They take great pride in providing top-quality products that keep you moving forward.
Proven to Perform
From interstate highways to gravel country roads and dirt trails, vehicles of all types are performing flawlessly thanks to quality parts from DB Electrical.
Fast Delivery
DB Electrical keeps parts stocked so they are ready to ship when you place an order, getting you up and running all the sooner.
Priced to Please
With prices that often save you up to 30% over OEM, DB Electrical parts are manufactured to OEM specifications for outstanding performance.
Production Partners
DB Electrical works closely with factories in the design of its parts, never simply buying excess inventory in the marketplace like some sellers do.
Correct 130-Amp Output — Exactly What Hyundai Designed
Hyundai engineered the Genesis 3.8L charging system around a 130-amp alternator to balance performance, comfort features, and reliability. This unit delivers:
-
Stable voltage at idle and cruising speeds
-
Proper battery recharge after starts
-
Consistent output with accessories running
-
Reduced long-term stress on wiring and control modules
Not oversized. Not underpowered. Just right.
Brand-New Construction for Long-Term Reliability
The DB Electrical AND0617 alternator features:
-
New high-efficiency copper windings
-
Internal voltage regulation for clean, stable output
-
Precision-balanced rotor and quality bearings
-
OE-style mounting points and electrical connectors
No reman internals. No mystery wear. Just dependable charging for a platform that deserves it.
Why Buy from Pro Street Online?
At Pro Street Online, we sell parts that actually solve problems:
-
Vehicle- and engine-specific fitment
-
Correct amperage for Hyundai Lambda V6 platforms
-
Brand new — not remanufactured
-
Built for daily driving and long-term ownership
If your Genesis keeps acting electrically dramatic, this is the fix.
Final Verdict
The DB Electrical AND0617 130-Amp Alternator for Hyundai Genesis & Genesis Coupe 3.8L (2009–2016) delivers OE-correct fitment, stable charging output, and dependable long-term reliability. Install it once and stop thinking about your charging system—which is the goal.
G. Williams –
Received item, looks to be of high quality. Sadly the Alternator DOES NOT fit the Genesis 3.8 4 door sedan, this unit is for the COUPE models ONLY. The output connector on this model has TWO prong connector, the sedan uses a FOUR prong connector, so had to return. ATTN: SELLER PLEASE UPDATE YOUR FITMENT, this is GENESIS COUPE ONLY!
