Why the MonoSS System Works on the S550
The S550 chassis responds extremely well to better damper control. The MonoSS uses monotube dampers, which react faster and manage spring motion far better than factory twin-tube suspension.
Key Features
-
Adjustable ride height via threaded bodies
-
Independent spring preload adjustment
-
16-click damping adjustment
-
Monotube shock design for consistent response
-
Matched spring rates for S550 balance
Translation: the suspension finally does what you tell it to do.
Lowering an S550 Mustang (Without Breaking Geometry)
Yes, it lowers the car. More importantly, it keeps suspension travel usable.
Smart drop ranges:
-
1.0–1.5 inches: Ideal for daily driving + spirited street use
-
1.5–2.0 inches: Aggressive stance (alignment becomes mandatory)
Go lower and you’ll invite bump steer, reduced travel, and scraping noises you didn’t budget for. MonoSS lets you set height without sacrificing shock travel, which is why it actually drives better.
Vehicle Fitment
-
2015–2022 Ford Mustang
-
S550 chassis
-
EcoBoost, GT, GT350 (application-specific)
(Street and street/track use; not a drag-only or extreme stance kit)

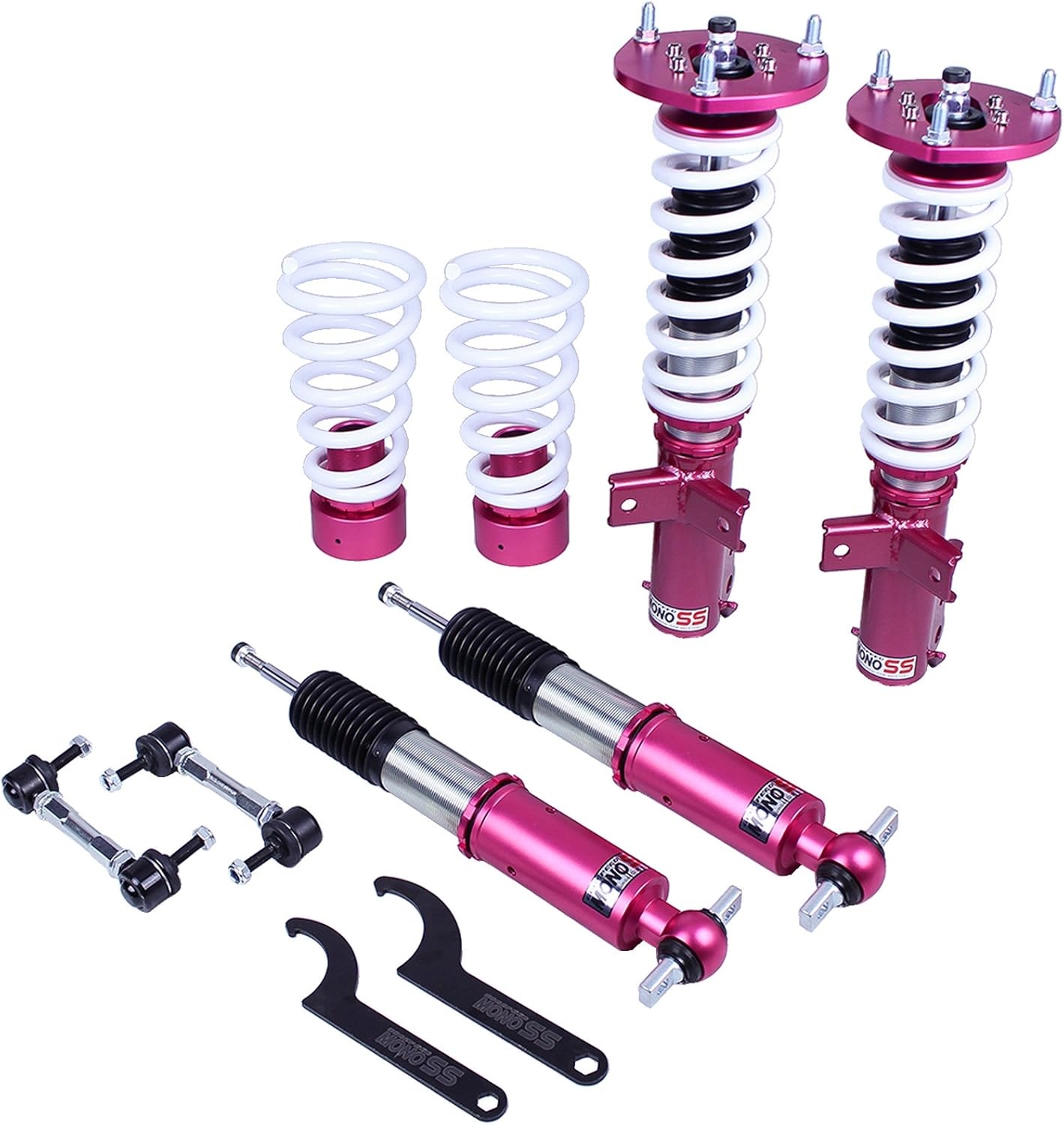

Godspeed Project’s MonoSS is our one entity in our family of single-adjustable coil-over suspension kits. These coil-overs are designed to be a street-able race built coil-over at an affordable price. It features a mono-tube damper that is made out of a carbon seamless steel 52 mm tube with a performance internal piston providing maximum damper response. The cold-bent springs are made from high strength SAE9252 steel to optimize the balance between performance and comfort.
Using race quality shock oil, Godspeed Project can guarantee exceptional damper performance at any temperature on and off the track. The top of the shock is attached to the car using a high quality top hat that features a high performance Japanese KOYO 6204Z bearing pillow ball mount (when applicable). The bottom shock brackets are made out of a T7075 forged aluminum or carbon steel brackets for lighter weight without sacrificing durability which also includes brake line brackets (when applicable). The MonoSS offers 16 level of damper adjustability which can be set to your preference.
Features:
- Front camber plates with pillow ball mount for camber adjustment
- 16 precise levels of damper adjustment
- Koyo Japan 6204z bearing
- Polyurethane bushing (if applicable)
- Monotube shock design
- Anodized shock body
- Lightweight aluminum lower mount and T7075 forged aluminum / carbon steel brackets
- 52 mm carbon steel shock body with a performance internal piston
- Independent ride height and spring preload adjustments
- Race shock oil with a high viscosity index
- 1 Year Warranty from Date of Purchase
Prior to installation, verify all hardware and properly preload suspension to 1-3 mm. Our technical department is available to answer any other questions.
Ride Quality: Adjustable Beats Guessing
With 16 damping settings, you can tune the car instead of tolerating it.
-
Softer settings → daily comfort, rough roads tolerated
-
Mid settings → balanced street performance
-
Firmer settings → sharper response, reduced body roll
Compared to worn OEM suspension:
-
Less float at speed
-
Better control over bumps
-
More confidence under braking and cornering
Firm when you want it. Civil when you need it. Revolutionary concept.
Alignment After Installation (Non-Negotiable)
Lowering an S550 always changes alignment geometry.
What changes:
-
Increased negative camber up front
-
Toe shifts out of spec (tire killer #1)
-
Caster affects straight-line stability and steering return
Strongly recommended:
-
Professional alignment at final driving height
-
Adjustable camber plates for proper correction
-
Keep toe close to factory specs for street use
Good coilovers with bad alignment just eat tires faster.
Handling Improvements You’ll Actually Feel
Once installed and aligned, expect:
-
Sharper turn-in
-
Reduced nose dive under braking
-
Less body roll
-
More mid-corner confidence
No, it won’t turn your Mustang into a GT3 car—but it will feel dramatically more composed than stock.
Build Quality & Ownership Notes
-
Durable anodized finish
-
Rebuildable monotube dampers
-
Designed for long-term street and performance use
Install tip: Anti-seize the threads. Adjustable coilovers that seize later are just expensive décor.
Who This Kit Is For
✔ Daily-driven S550 Mustangs
✔ Street & street/track crossover builds
✔ Owners who want real adjustability
✔ Drivers who understand alignment matters
❌ Drag-only setups
❌ Extreme slammed builds
❌ “Alignment is optional” thinkers
