Wastegates provide a means to control the boost pressure of the turbo charged engine. Wastegates work to bypass exhaust flow from the turbine wheel. Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegates uses boost pressure and spring force to regulate the flow bypassing the turbine. Wastegates are bolted to exhaust manifold or header. The advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine. This tends to improve the turbine’s performance.

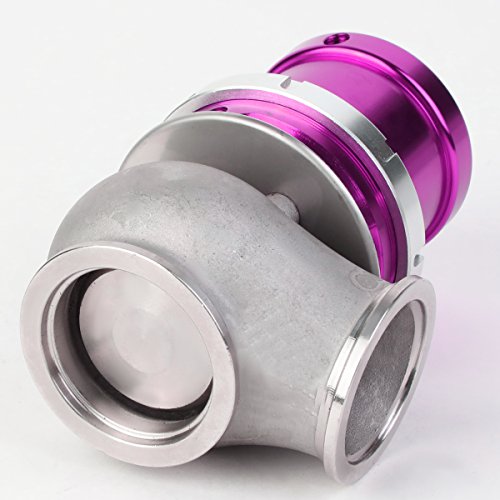

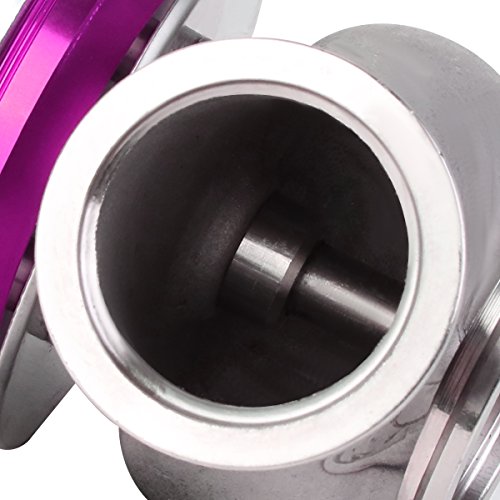

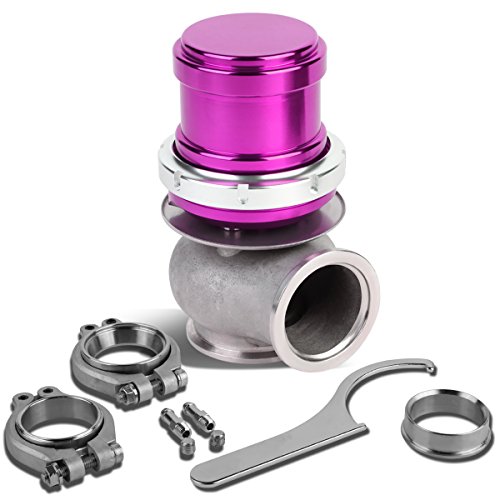

High Strength Cast Body; Fits any 40mm Standard V-Band Wastegate Port

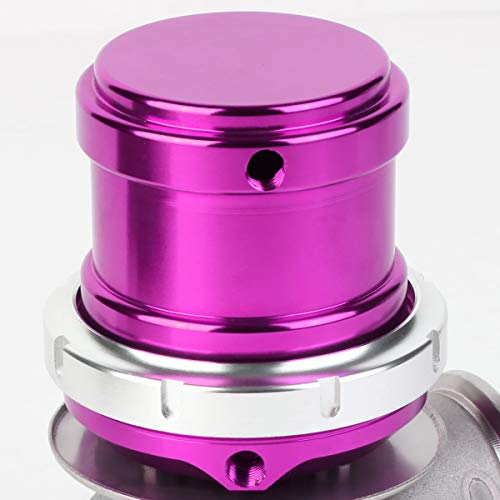

Anodized Aluminum Top Finish; Stainless Steel Weldable Flange Inlet / Outlet Flanges
Barbed Fittings; Comes with Preinstalled 14-Psi Spring
Comes with Preinstalled 14-Psi Spring; Stainless Steel Sealing Ring
Easy to Remove Locking Collar for Fast Spring Changes
