💨 Engineered for Efficiency – How It Works
The DNA 40mm External Wastegate regulates boost by diverting exhaust gases away from the turbocharger once a preset boost level is reached. This allows you to control turbo speed and maintain consistent boost without over-stressing your engine or turbo system.
The 40mm valve size provides the perfect flow for mid-to-high horsepower applications, ensuring precise control and smooth power delivery whether you’re at full throttle or part-load.
Key Performance Features:
-
40mm stainless steel valve for superior heat resistance
-
Anodized billet aluminum actuator housing for durability
-
High-temperature silicone diaphragm for consistent performance
-
Multiple spring options for adjustable boost levels
-
Designed to fit most T3, T4, and custom turbo manifolds
With the WG-TS-40MM-T11-PP, you get precise boost management, reduced turbo lag, and greater reliability — all in one compact, race-ready unit.
Waste gates provide a means to control the boost pressure of the turbo charged engine. Waste gates work to bypass exhaust flow from the turbine wheel. Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Waste gates uses boost pressure and spring force to regulate the flow bypassing the turbine. Waste gates are bolted to exhaust manifold or header. The advantage of external Waste gates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine. This tends to improve the turbine’s performance.
🔩 Built to Handle High Boost and Heat
Performance is nothing without durability — and the DNA 40mm Wastegate is built to last. Its stainless steel valve and flanges are designed to withstand extreme exhaust gas temperatures, while the CNC-machined aluminum housing ensures perfect sealing and minimal wear over time.
✅ Corrosion-resistant finish protects against oxidation
✅ Heat-resistant construction maintains performance under boost
✅ Rebuildable design for long service life
✅ High-flow valve design minimizes boost creep
The DNA WG-TS-40MM-T11-PP is engineered to handle the rigors of turbocharged performance — from daily street driving to all-out racing abuse.

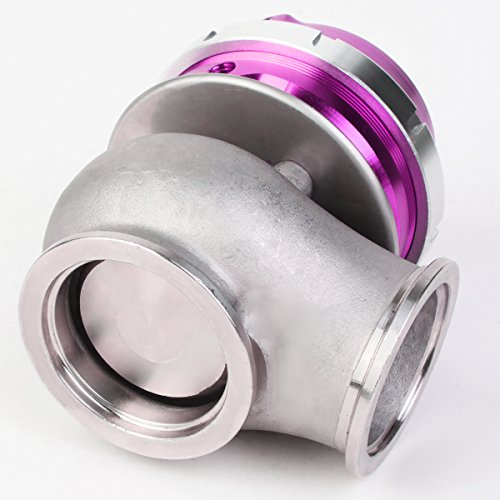

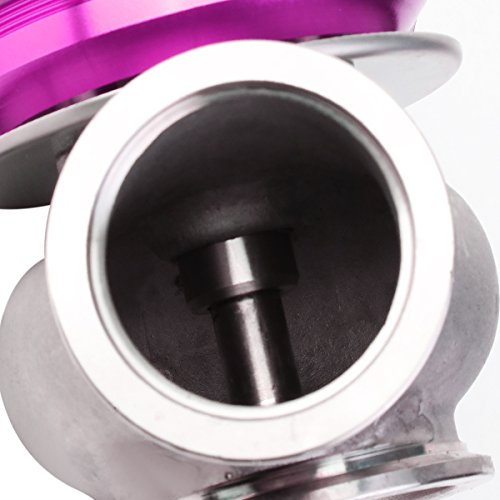

High Strength Cast Body; 40mm Stainless Steel Valve
Fits any 40mm Standard V-Band Waste gate Port; Anodized Aluminum Top Finish
Stainless Steel Wieldable Flange Inlet / Outlet Flanges
🧠 Universal Compatibility – Fits Most Turbo Manifolds
The DNA 40mm Wastegate is designed with universal 2-bolt flanges, making it compatible with most T3, T4, and custom turbo manifolds. It’s the perfect choice for builders, fabricators, and tuners who need a reliable external wastegate solution for their performance setup.
Common Applications:
-
Honda Civic / Integra B-Series, D-Series, K-Series turbo builds
-
Nissan SR20DET, KA24DE, and RB series swaps
-
Toyota 1JZ / 2JZ / 3S-GTE engines
-
Subaru WRX / STI turbo upgrades
-
Mitsubishi EVO 4–9 builds
-
Ford Mustang / Chevy LS / universal turbo kits
With its compact design and high-flow performance, the DNA 40mm Wastegate is a go-to upgrade for both custom turbo systems and factory turbo modifications.

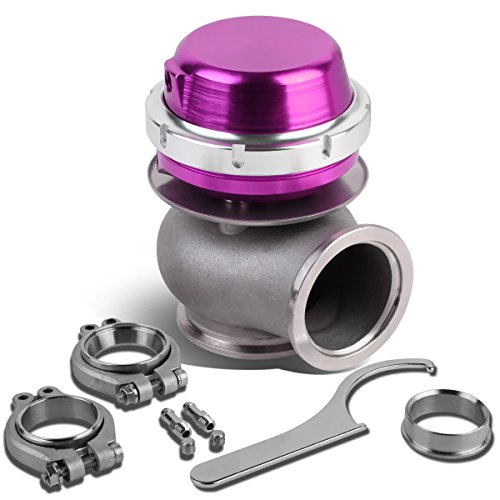

Barbed Fittings; Comes with Preinstalled 14-Psi Spring

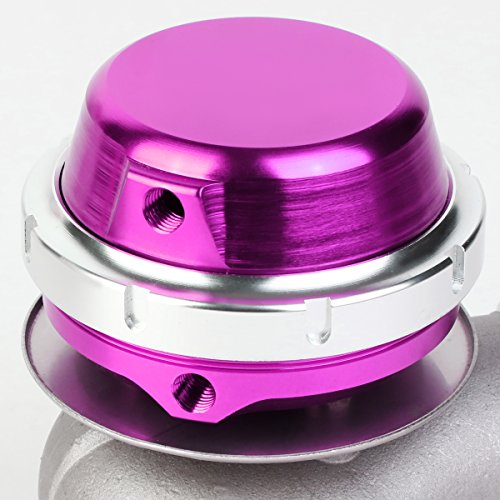

Stainless Steel Sealing Ring; Easy to Remove Locking Collar for Fast Spring Changes
🔊 Consistent, Controlled Boost Every Time
No more boost spikes, lag, or unstable power curves — the DNA 40mm Wastegate provides smooth and reliable boost control at any throttle position. By preventing uncontrolled turbo speed, it helps maintain optimal air-fuel ratios, improve drivability, and extend the life of your turbo and engine components.
When paired with a manual or electronic boost controller, this wastegate gives you complete control over your boost curve, letting you fine-tune your performance for maximum power and response.
🧩 Key Specifications – DNA 40mm Wastegate WG-TS-40MM-T11-PP
-
Brand: DNA Motoring
-
Model: WG-TS-40MM-T11-PP
-
Valve Size: 40mm
-
Type: External Wastegate (Turbo Manifold Mount)
-
Material: Billet aluminum housing / stainless steel valve
-
Finish: Polished anodized aluminum
-
Flange Type: 2-bolt universal (T3/T4 compatible)
-
Boost Control Range: Adjustable via internal springs
-
Cooling Type: Air-cooled
-
Applications: Universal turbocharger systems
-
Color: Polished Purple / Silver (varies by model batch)
🌟 Why Choose the DNA 40mm Wastegate for Your Turbo Build?
✅ Reliable Boost Control: Prevents overboost, ensuring engine safety.
✅ High-Temperature Performance: Stainless components withstand extreme exhaust heat.
✅ Precision Construction: Machined for perfect sealing and smooth operation.
✅ Universal Fit: Compatible with most turbo manifolds and setups.
✅ Affordable Upgrade: Professional-grade performance without the high-end price tag.
✅ Easy Maintenance: Rebuildable and serviceable design for long-term use.
Whether you’re tuning your daily driver or building a dedicated race car, the DNA 40mm Wastegate gives you confidence and consistency every time you hit boost.
🏎️ Perfect for Street and Track Builds
The DNA 40mm Wastegate WG-TS-40MM-T11-PP is ideal for turbo setups running anywhere from mild street boost to high-performance race configurations. It provides stable, accurate boost control, allowing you to safely push your setup for maximum power gains.
Pair it with other DNA Motoring turbo components such as boost controllers, intercoolers, or downpipes, and you’ve got a complete, reliable performance package ready to handle serious power.
🏁 Conclusion: Dominate Your Boost with the DNA 40mm Wastegate
The DNA 40mm Wastegate (WG-TS-40MM-T11-PP) is the perfect combination of performance, reliability, and value. With its precision-built 40mm valve, CNC-machined billet construction, and high-heat durability, this external wastegate offers race-level control at an affordable price point.
If you’re looking to maximize your turbo efficiency, prevent boost spikes, and protect your engine while gaining smoother power delivery — the DNA 40mm Wastegate is the upgrade you’ve been waiting for.
Control your boost. Unlock your performance. Trust DNA Motoring.
