Why Oil Pressure Monitoring Is Non-Negotiable
Oil pressure keeps everything alive—bearings, cams, crank, turbo (if you’ve got one). Lose pressure, and things go from “fine” to “expensive rebuild” in seconds.
This gauge gives you:
- Immediate feedback
- Accurate mechanical readings
- Early warning before catastrophic failure
Basically, it’s the difference between fixing a problem and replacing an engine.
Product Info:

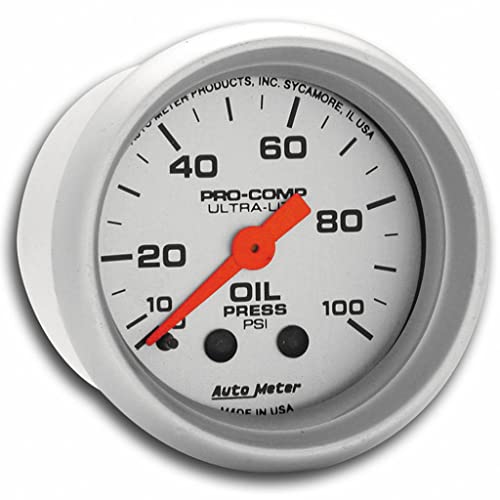

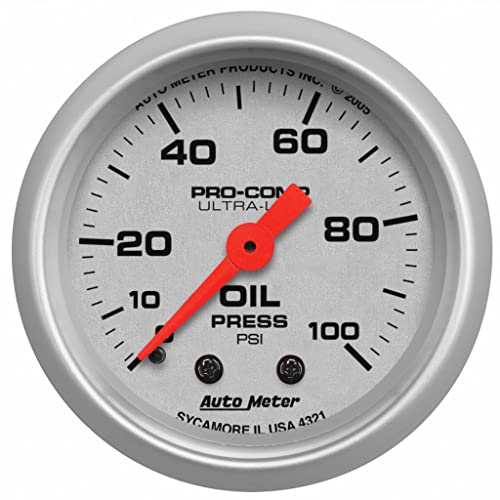

– Autometer Ultra-Lite 52Mm 0-one hundred Psi Mechanical Oil Pressure Gauge
– Size: 2-1/16 Inch (52.4Mm)
– Type: Mechanical
– Range: 0-one hundred Psi
– Lighting: Incandescent
Key Features & Benefits
Mechanical Oil Pressure (0–100 PSI Range)
Direct pressure readings via oil line—more responsive and accurate than most electric gauges.
52mm (2-1/16″) Standard Size
Fits most pods, A-pillars, and dash mounts—easy integration into any build.
Ultra-Lite Series Styling
Silver/aluminum face with black markings—clean, high-contrast look that stands out without being obnoxious.
High Accuracy & Instant Response
No electronic delay—what your engine sees is what you see.
Includes Installation Hardware
Typically comes with fittings and tubing for install (always verify kit contents).
Durable Construction
Built to handle heat, vibration, and real-world driving conditions.
Manufacturer Part Number:
– Part Number: 4321
Product Features:
– Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
– Autometer’S Race Proven Mechanical Instruments Provide Trusted Accuracy At the same time as Being Simple To Install
– No Electrical System Required For Gauge Operation – Compatible With Each Street Or Race Vehicle
– Mechanical Movements Provide Accuracy And Durability Even In The Harshest Environments

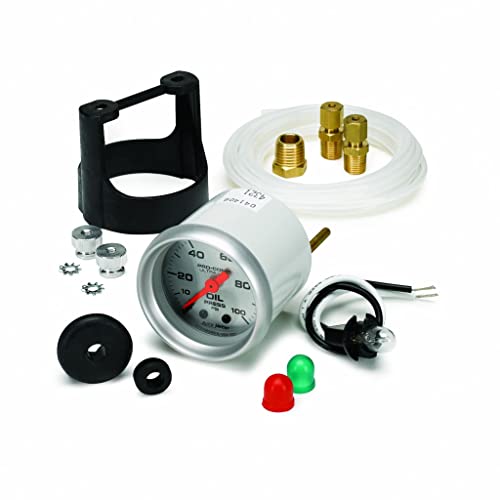

– Gauge Kit Includes 1/8 Inch Nylon Line, 1/8 Inch Npt Compression Fittings, 1/4 Inch Npt Adapter, Bulb And Socket Assembly, Red And Green Bulb Covers, Mounting Hardware, And Detailed Instructions For Installation
Ideal Pressure Ranges (Know This or Pay Later)
- Idle (Warm): ~10–20 PSI
- Cruising: ~30–60 PSI
- Rule of Thumb: ~10 PSI per 1,000 RPM
- Sudden Drop: 🚨 shut it down immediately
Best Use Cases
- Performance builds (NA or boosted)
- Track cars and high-RPM setups
- Engine swaps
- Older vehicles with questionable factory gauges
- Anyone who likes their engine… intact
Additional Info:
– 1/8 Inch Npt Male To one/8 Inch Compression Fitting, 1/8 Inch Npt Female To one/8 Inch Compression Fitting, 1/8 Inch Npt To one/4 Inch Npt Bushing
– 2230
Mechanical vs Electric (Quick Truth)
| Mechanical | Electric |
|---|---|
| More accurate | Easier install |
| Instant response | Slight delay |
| Requires oil line into cabin | No fluid routing |
Mechanical = better data
Electric = less effort
Pick your priority.
Autometer Ultra-Lite 52mm 0-one hundred PSI Mechanical Oil Pressure Gauge
Part Number: 4321
Traditional incandescent lighting illuminates across the perimeter of the dial
Comprised of the best quality materials. Built to outperform and live longer than the contest.
Installation Notes (Pay Attention Here)
- Tap into engine oil pressure port
- Route oil line carefully (no kinks, no leaks)
- Secure fittings properly
- Consider a gauge isolator if you don’t want oil inside the cabin
Yes, it’s slightly more involved—but worth it.
Is AutoMeter Ultra Lite oil pressure gauge Worth It?
Absolutely.
This is one of the most important gauges you can install. It gives you:
- Real-time engine health data
- Early warning of failure
- Peace of mind under load
If you’re modifying your car and don’t have an oil pressure gauge… you’re just hoping for the best.
Factory Sealed – Up to date in box
