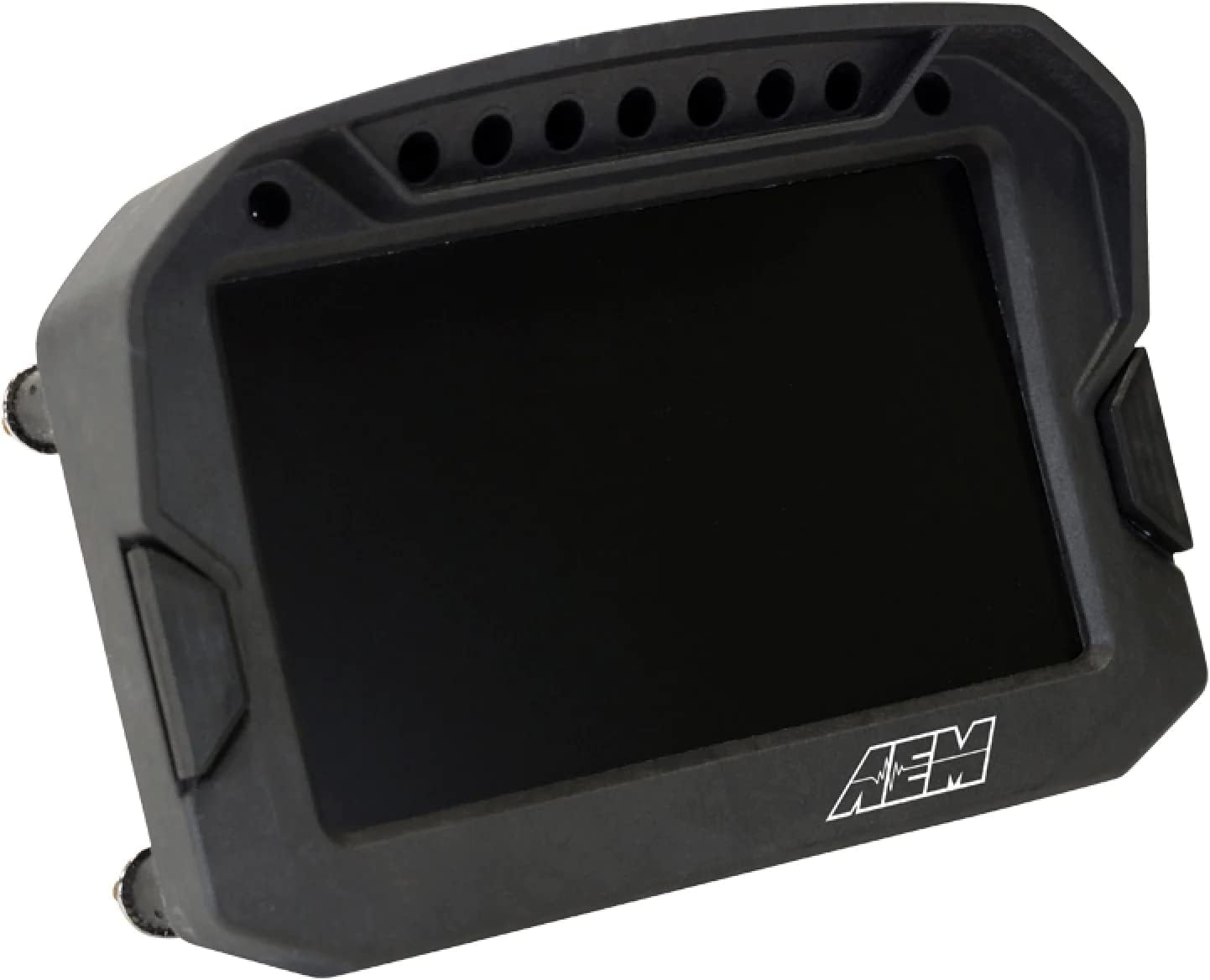

AEM 30-5601 CD-5L Carbon Logging Digital Dash Display (Non-GPS Enabled)
Advanced Data Logging
-
Massive internal logging memory
-
High-speed data capture
-
Log anything available over CAN, OBD2, or ECU stream
Ideal for:
-
Tuning
-
Track analysis
-
Boost control monitoring
-
Powertrain diagnostics

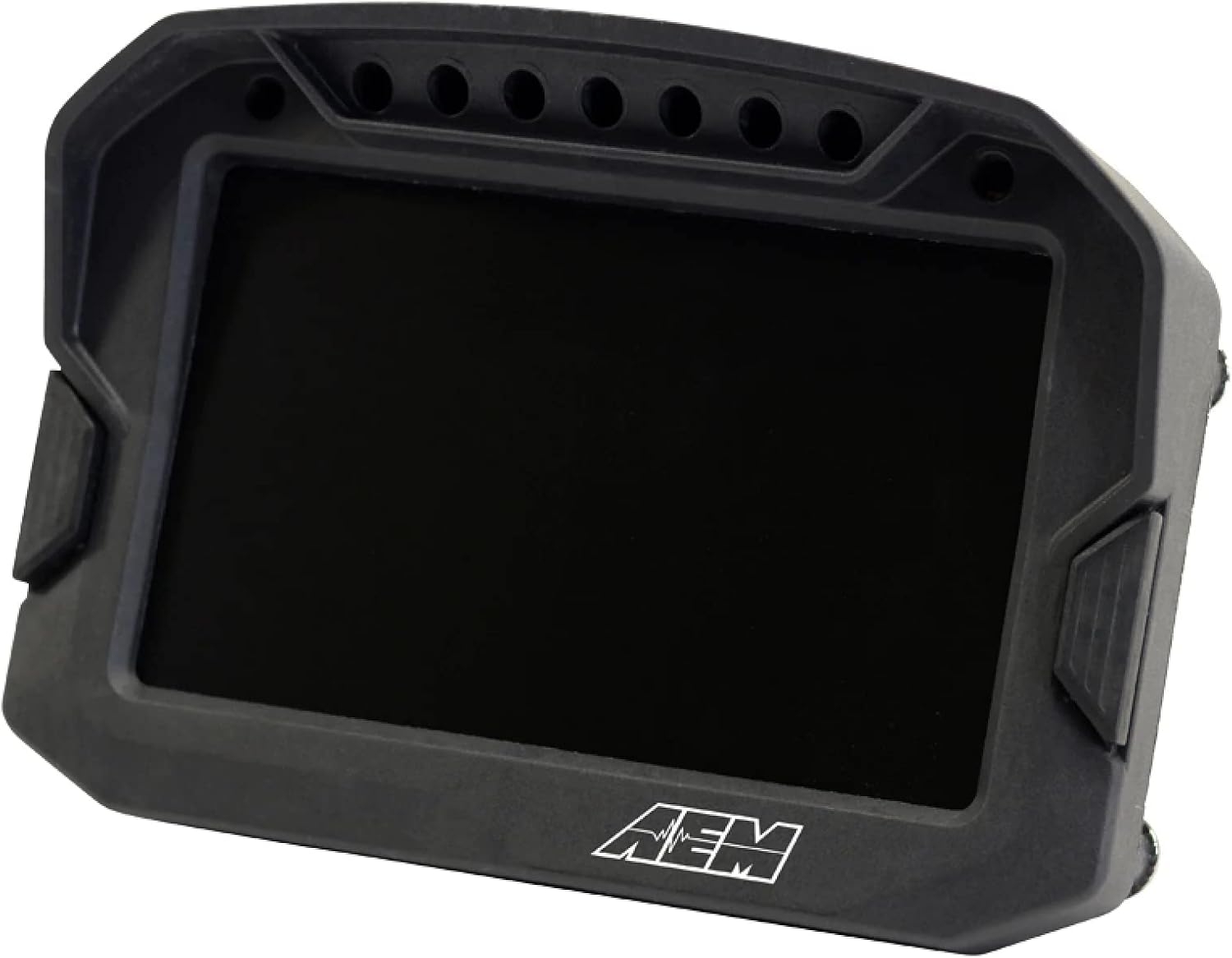

Carbon-Composite Housing
Lightweight, rigid, and built to withstand vibration, heat cycles, and the abuse of real motorsport environments.
CAN + OBDII Integration
Compatible with:
-
AEM Infinity
-
AEM EMS / EMS-4
-
AEM X-Series sensors
-
Most major standalone ECUs
-
OBDII-based CAN vehicles
Plug-and-play with AEMnet.
Minimal setup for most standalone ECUs.

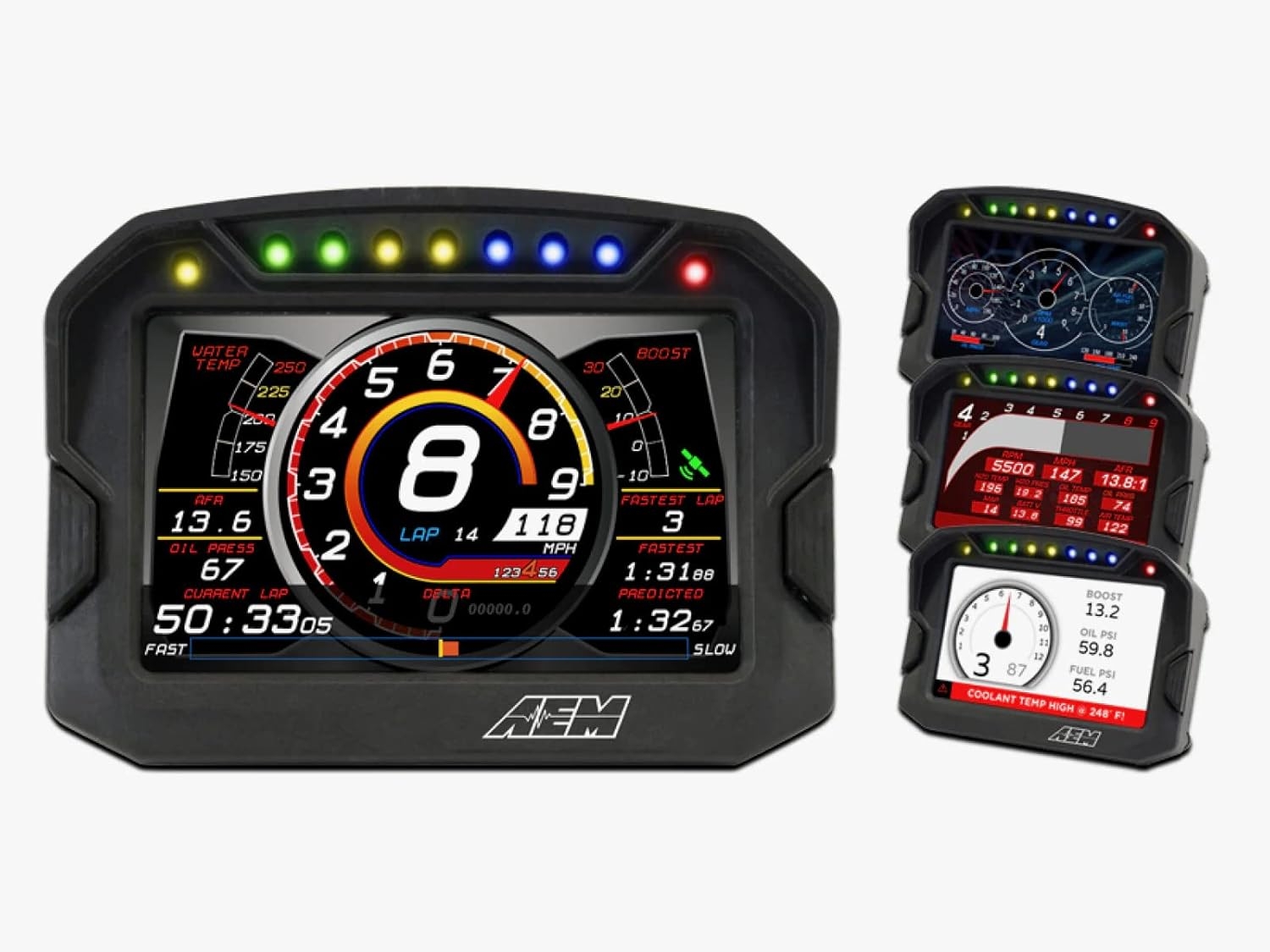

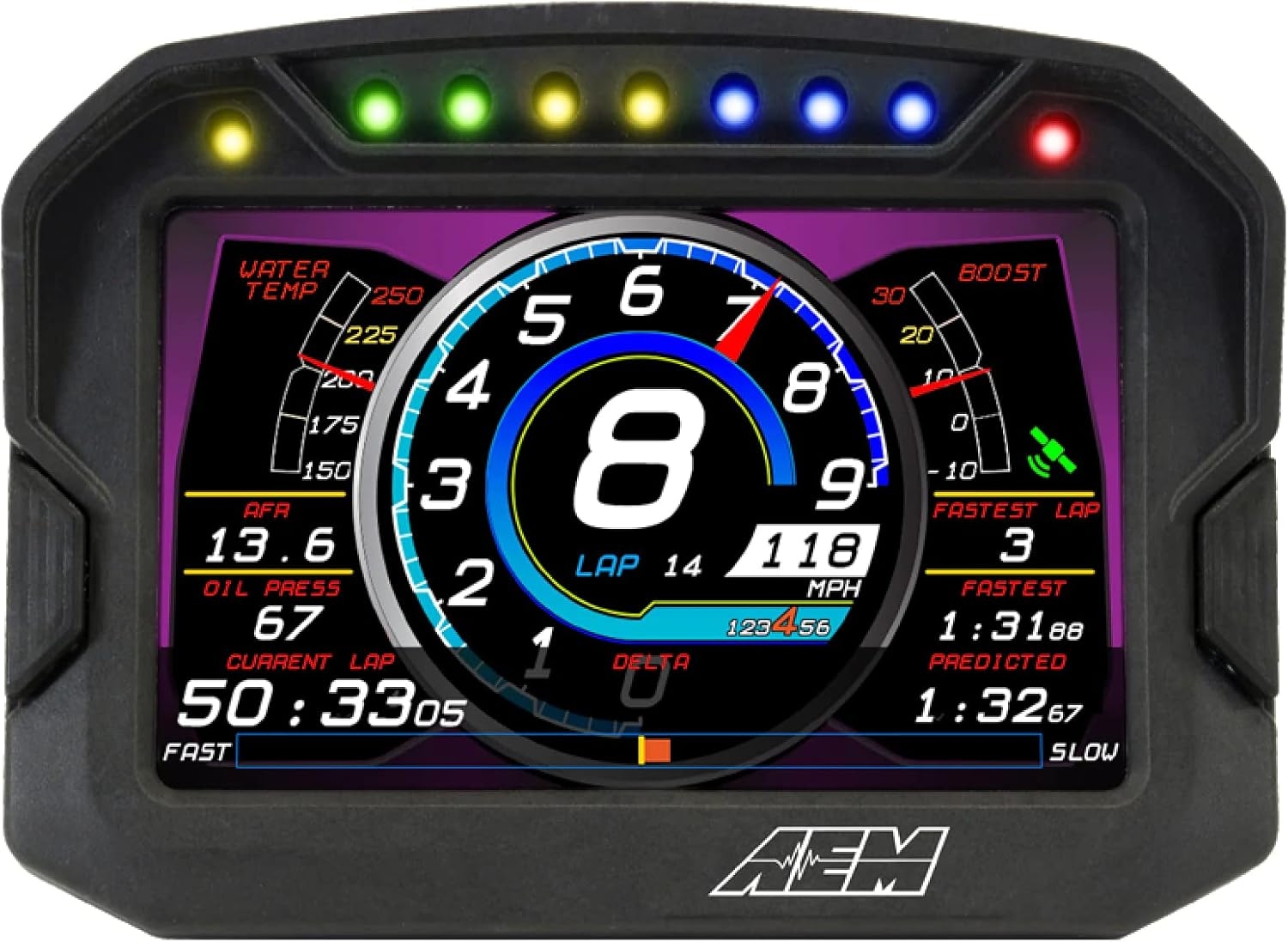

Highly Customizable UI
-
Full screen, split screen, multi-gauge
-
Warning pop-ups
-
User-defined alarms
-

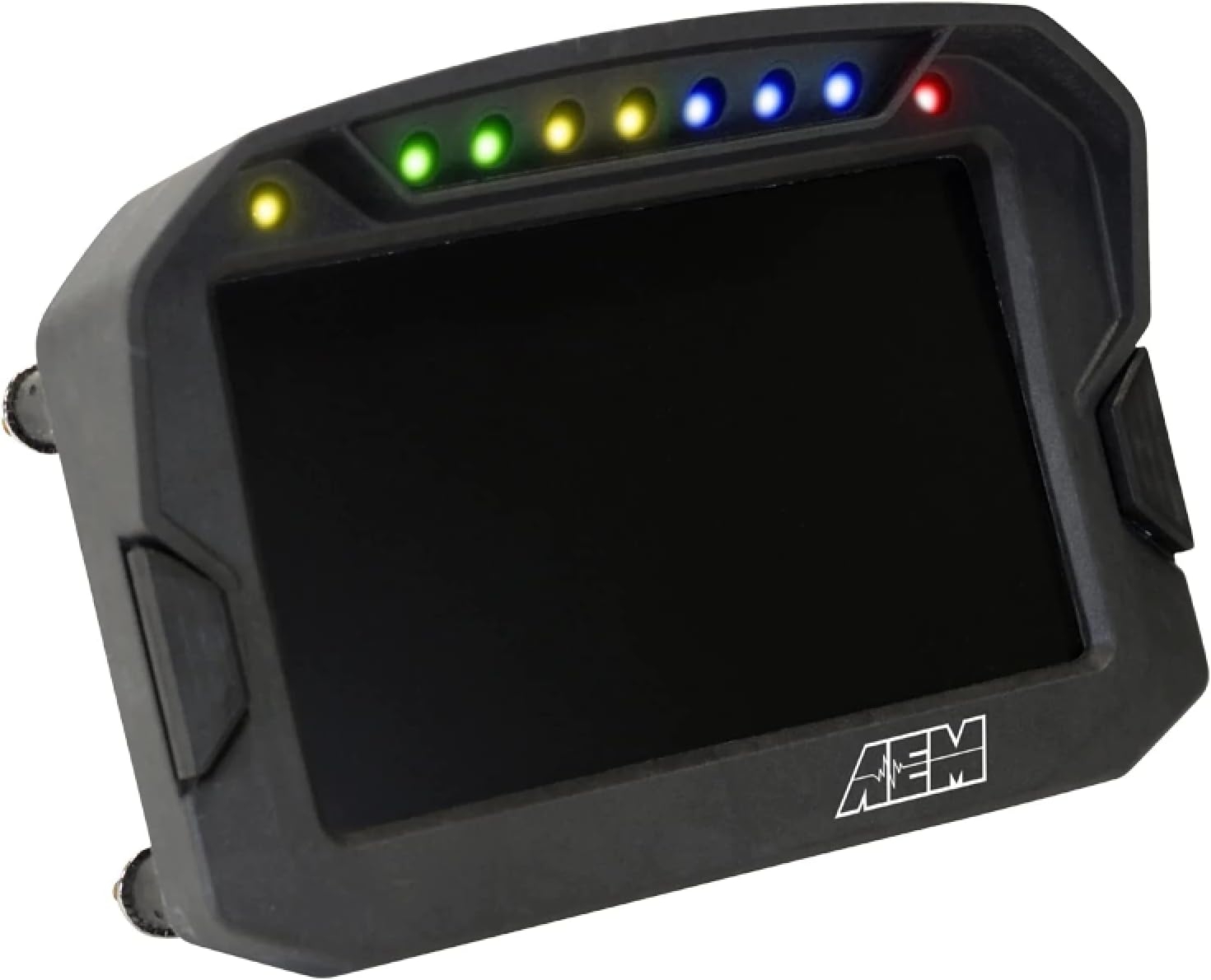

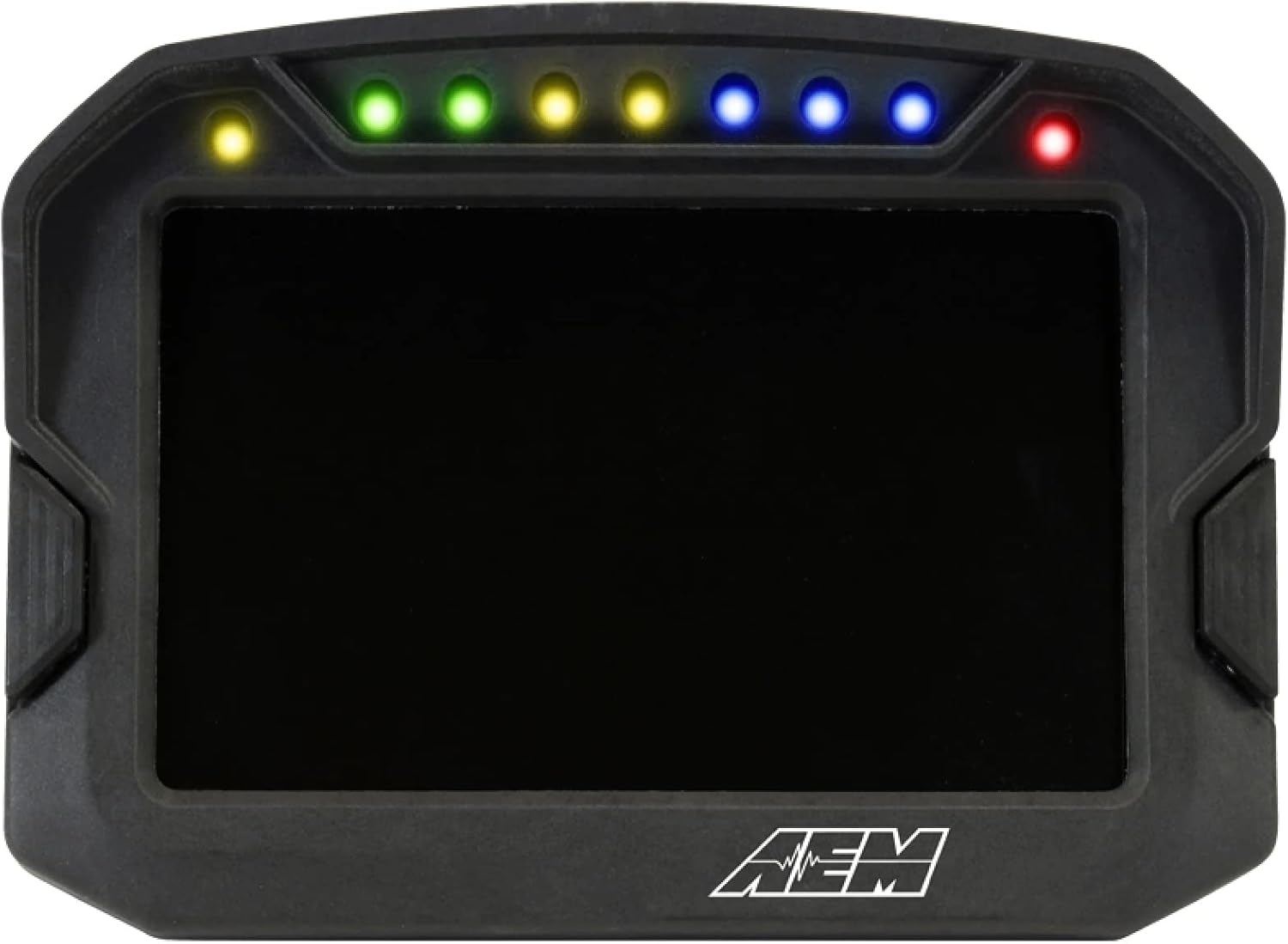

Shift light control
-
Dynamic pages (auto page swapping by RPM, gear, temp, boost, etc.)
No GPS Included
Perfect for builds that already use:
-
External GPS antennas
-
Vehicle speed sensors
-
Race timing systems
Performance & Tuning Advantages
-
Centralizes all critical engine data in one digital hub
-
Replaces cluttered analog clusters
-
Logs throttle, boost, AFR, EGT, gear, coolant, oil pressure—all simultaneously
-
Useful for diagnosing misfires, boost issues, AFR inconsistencies
-
Enhances cockpit visibility and safety with configurable warnings
This dash turns the interior into a legit motorsport command center.

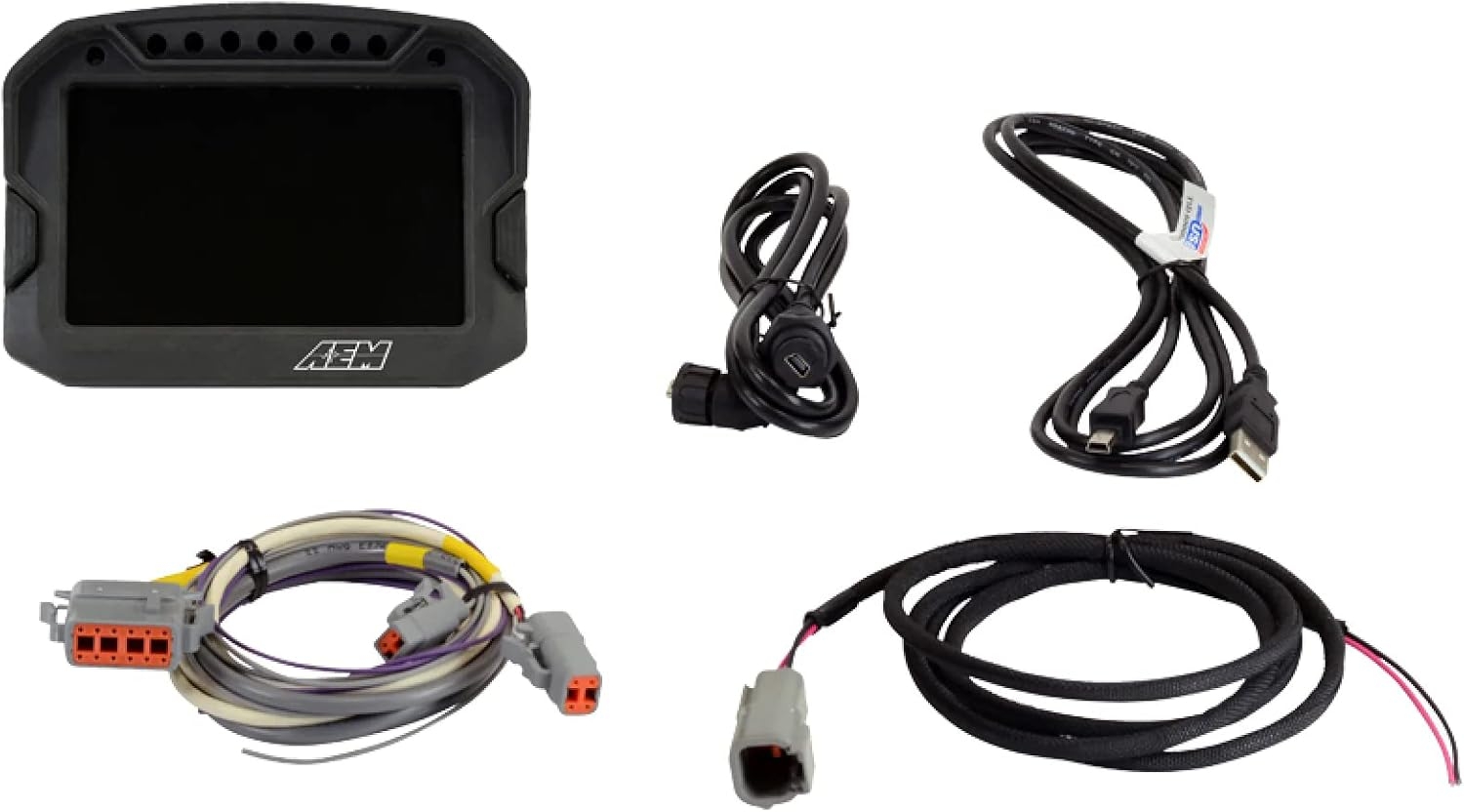

Installation Notes
-
Requires CAN or OBDII connection
-

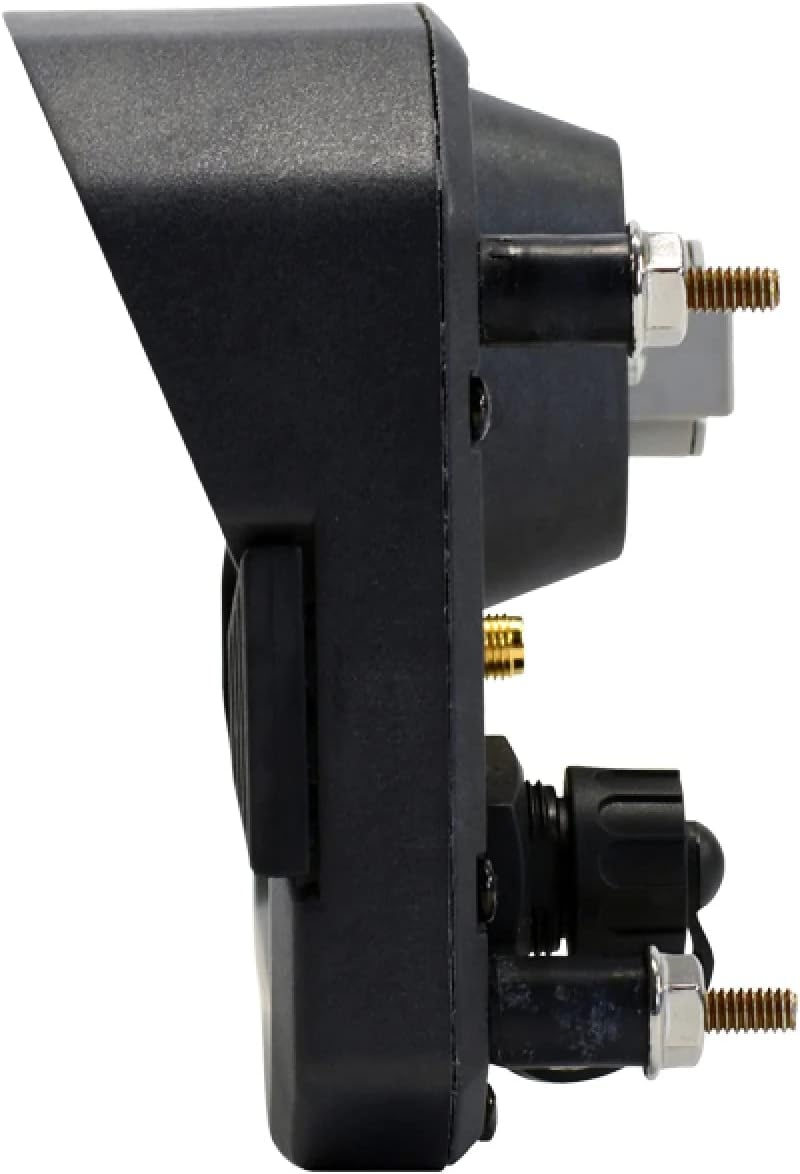

Universal mount pattern fits most custom bracket setups
-
Optional buttons allow page switching and control while driving
-
Logging memory is internal—no external modules required
Average install time: 1–2 hours, depending on ECU integration.
Ideal For
-
Track cars
-
Time attack builds
-
Drift setups
-
Turbo projects
-
High-power street builds
-
Cars using standalone ECUs
If you’re serious about tuning or racing data, this is the dashboard you want.
Final Verdict
The AEM 30-5601 CD-5L Carbon Logging Dash is one of the best digital displays available for motorsport and high-performance builds.
It offers exceptional logging power, rugged construction, incredible clarity, deep customizability, and universal CAN/OBD2 compatibility—all without unnecessary GPS hardware.
A premium digital dash for anyone building a serious car.
