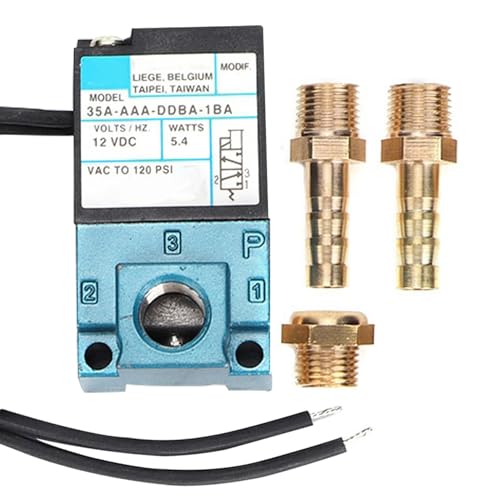

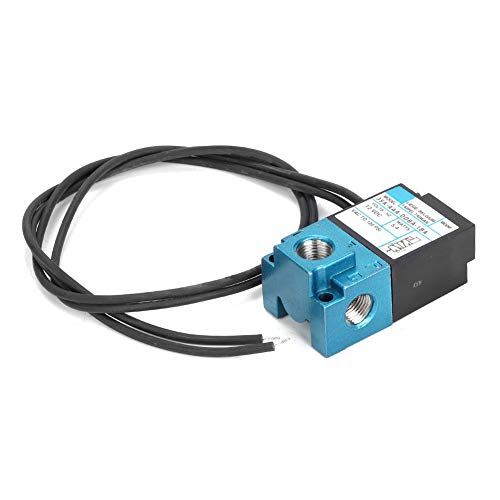

Electronic Boost Controller, 3 Port Boost Control Solenoid Valve DC 12V 5.4W 35A-AAA-DDBA-1BA

Universal Turbo Compatibility

This 3-port electronic boost control solenoid is designed for use with most turbocharged gasoline engines using an electronic boost controller or programmable ECU.

Common applications include turbo builds from:

• Honda

• Subaru

• Mitsubishi

• Nissan

• Toyota

This solenoid typically integrates with aftermarket engine management systems such as standalone ECUs or advanced boost controllers.

Key Specifications

• Voltage: DC 12V

• Power Consumption: 5.4W

• Configuration: 3-Port Solenoid Valve

• Model Reference: 35A-AAA-DDBA-1BA

• Control Type: Electronic ECU-controlled boost regulation

This style of solenoid is commonly referred to as a MAC-style boost control solenoid due to its fast response time and reliable operation.

Why Use a 3-Port Boost Control Solenoid?

Compared to traditional manual boost controllers or 2-port solenoids, a 3-port design offers:

• More precise boost control

• Faster boost response

• Better boost stability

• Improved turbo spool characteristics

• Greater flexibility in ECU tuning

Because the ECU directly controls the solenoid, boost pressure can be dynamically adjusted based on throttle position, RPM, and load.

Pulse width modulation (PWM) driven.
Stable, reliable and fast boost targeting.
5.4W, 25.4ohm coil, Full vacuum to 120 PSI.

How the 3 Port Electronic Boost Control Solenoid Works

A 3-port boost solenoid controls the pressure signal going to the wastegate actuator.

The ECU sends electrical signals to the solenoid to:

1. Regulate pressure sent to the wastegate

2. Delay wastegate opening

3. Allow the turbocharger to build boost more efficiently

This process enables advanced boost strategies such as:

• Boost-by-gear

• Boost-by-RPM

• Closed-loop boost control

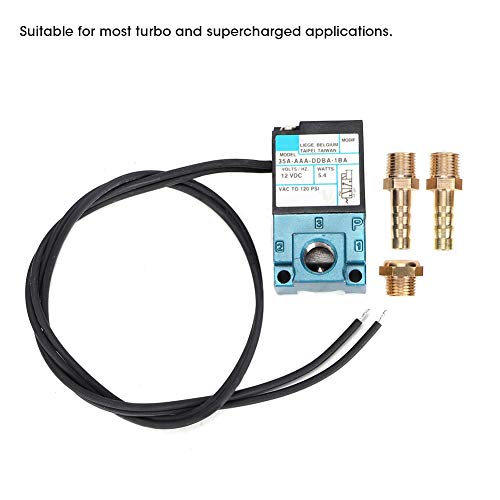

Suitable for most turbo and supercharged applications.
3 port solenoid – this is the most common method for controlling boost.

Electronic boost control solenoids are commonly used in:

✔ High-performance turbo builds
✔ Standalone ECU setups
✔ Street/strip performance vehicles
✔ Track and race cars
✔ Advanced turbo tuning applications

They are especially beneficial when targeting consistent and repeatable boost levels under varying driving conditions.

Installation Overview

Installation typically involves connecting the solenoid between:

• Turbocharger compressor pressure source

• Wastegate actuator

• Intake pressure reference line

The solenoid is then wired to the vehicle’s ECU or electronic boost controller.

After installation, the boost control strategy must be configured through the engine management system.

3 Port Electronic Boost Control Solenoid Performance Benefits

With proper tuning, a 3-port electronic boost control solenoid can provide:

• Faster turbo spool

• More stable boost pressure

• Improved throttle response

• Higher overall horsepower potential

Precise electronic control allows tuners to safely extract maximum performance from turbocharged engines.

Important Tuning Considerations

Because electronic boost control directly affects turbo pressure, proper tuning is essential. Always ensure:

• Fuel system capacity supports increased boost

• ECU boost tables are configured correctly

• Boost pressure is monitored with a reliable gauge

• Engine knock and air-fuel ratios are properly managed

Boost control should always be adjusted carefully to prevent engine damage.

Final Thoughts

A 3-port electronic boost control solenoid is an essential component for modern turbo tuning setups. With ECU-controlled boost management, tuners gain precise control over turbocharger performance, allowing engines to deliver consistent power safely.

For serious turbo builds, electronic boost control provides the accuracy and flexibility needed to push performance to the next level.
